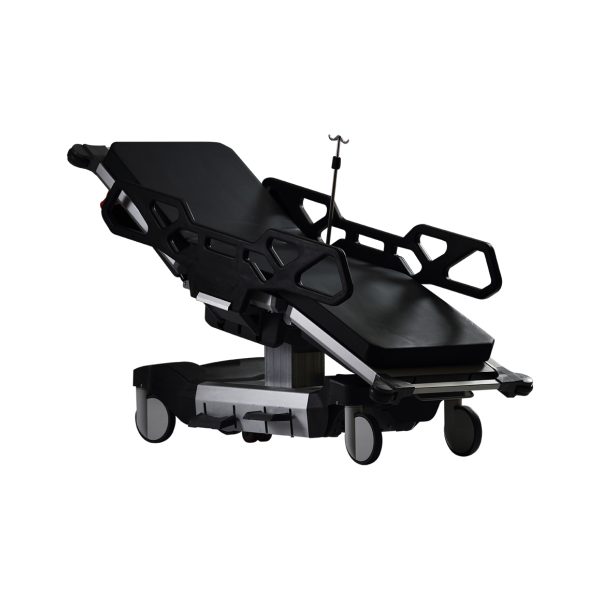

Linealife OTTO-5100 Emergency Stretcher

Features:
1.Movement: Backrest adjusted by two gas springs (800N) Max. 75

• 2. Movement : Legrest adjusted by two gas springs (800 N) Max 25®

• 3. Movement : Height adjusted by hydraulic pump (4500 N).

• 4. Movement : Trendelenburg and reverse trendelenburg adjusted by

four gas springs (1000 N).

• Produced by aluminium (%70).

• Epoxy painted metal frame (60 micron).

• Movable parts coated with galvanized.

• 200 mm central brake casters , 75 mm 5th castor.

• One castor is antistatic.

• X-Ray translucent.

• Mattress platform produced by HPL.

• Side rails structure : 20x20x1,5 mm profile covered by polyurethane.

• 3 lt tube holder.

• File holder on backrest.

• 3 mm ABS plastic covered on back and leg sides.

• Aluminium hinges.

• 7 mm aluminium column profile by 6063 T5 block.

• S.S Foldable serum holder with two hooks.

• Bumpers .

• Mattress platform produced by 8 mm HP.
Technical Specification:

Width: 817 MM

• Length: 2215 MM

• Mattresses Dimensions (MM): 600X 1995X100

• Min. Height: 560 + 230 MM

• Max. Height: 790 MM

• Back Angle (Max.): 70®

• Leg Angle (Max.): 25®

• Trendelenburg Angle: 14®

• Reverse Trendelenburg Angle: 13®

• Carrying Capacity: 250 KG

• Wheel: 200 MM
