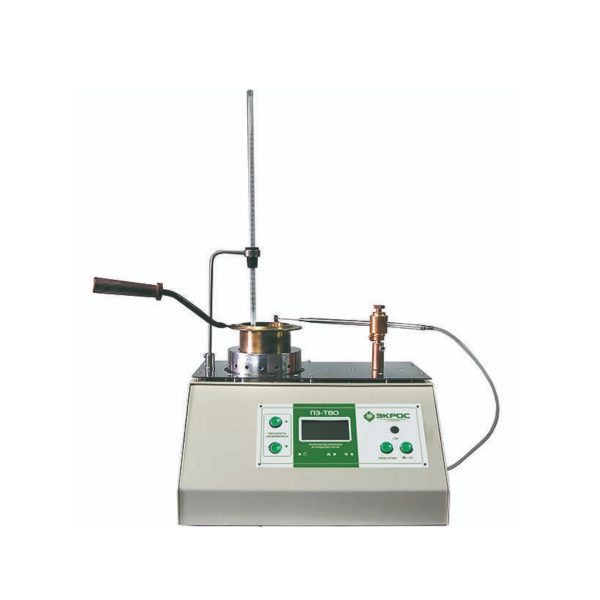

Cleveland Open Cup Flash Point Tester PE-TVO

Purpose:

The tester PE-TVO is intended for usage as laboratory equipment to perform open cup flash point determination of oil products according to method A ASTM D92 and GOST 4333-87.
Technical specifications:

– Maximum heating temperature, °C – up to 370

– Power supply voltage from AC mains with frequency of 50Hz, V – 220±22

– Power consumption, no higher than, W – 1000

– Instrument weight, kg – 5

– Service life, years at least – 5
Operation conditions:

– Air temperature, °C – 15?35

– Relative humidity, % – 30?90

– Overall dimensions (body), mm:

– Length, mm – 330

– Width, mm – 250

– Height, mm – 165

– Range of flash point determination, °C – 25-370

– Ignition device, type  – gas

– Control of electric heating power – electronic

– Automatic passage of burner above surface of sample at set speed

– Availability of gas network or cylinder (methane, propane/butane) is required
Scope of delivery:

1. The open cup flash point tester PE-TVO complete with cup – 1 pc.

2. Thermometer TH-2 according to GOST 400 – 1 pc.

3. Template for flame adjustment – 1 pc.

4. Operation manual- 1 pc.

5. Packaging crate – 1 pc.
