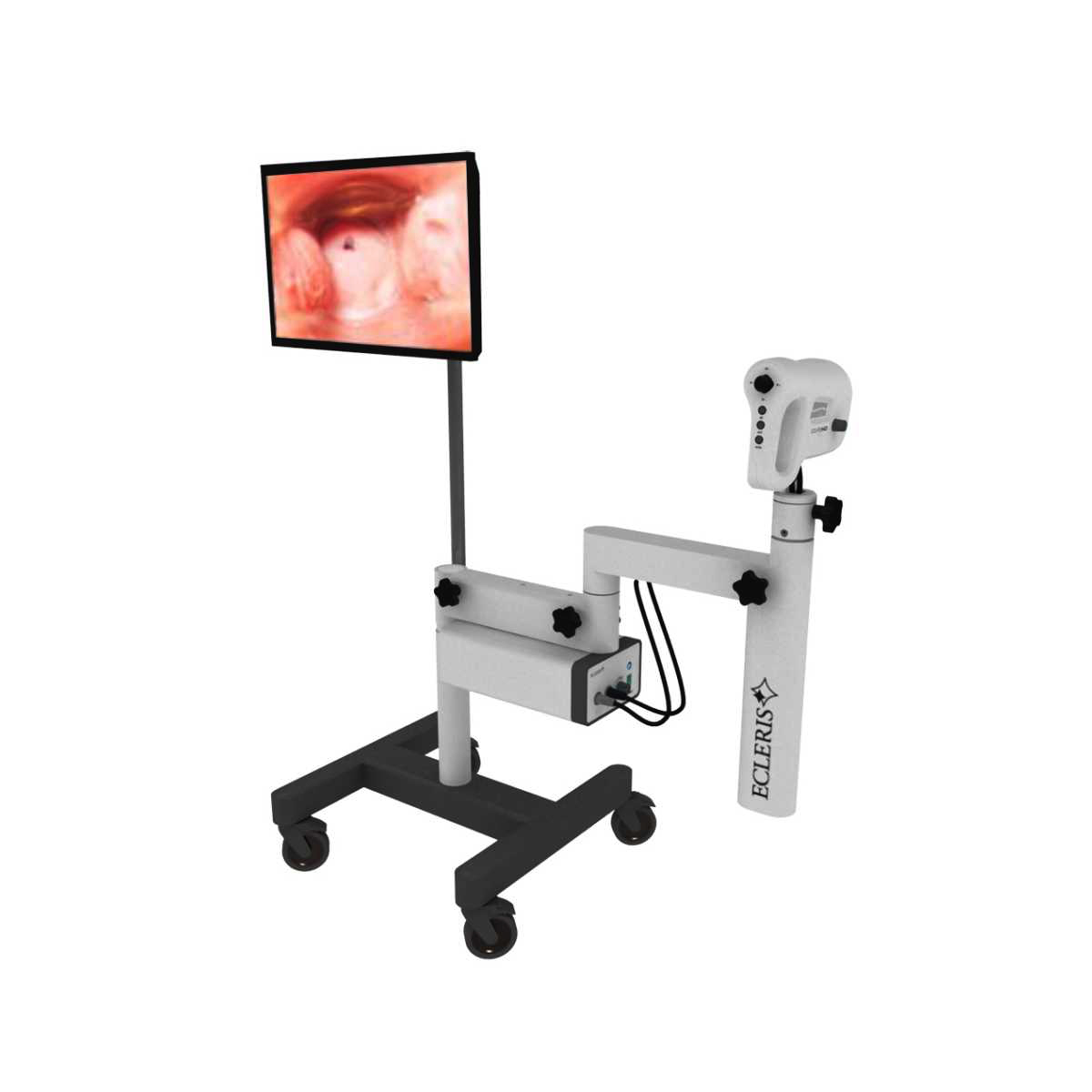

Ecleris HD Digital Video Colposcope
The Ecleris ColpoHD Digital Video Colposcope offers clinicians an illuminated, high definition magnified view of the cervix and tissues of the vagina and vulva. As a screening tool for sexual assault victims or for the early detection of precancerous lesions, the ColpoHD provides insight into relevant pathology changes of tissue shape and color with magnification of up to 50x and a digital zoom up to 128x. The integrated electronic green filter delivers exceptional pathology visualization, with clear, true color imaging and superb depth of field. The swing arm mounted high-definition (HD) camera can be easily maneuvered into place. Optional integrated image capture is available for documentation along with archiving and printing of images.
A powerful tool for cervical cancer screening
The ColpoHD is precise and easy to handle in all examination situations. High quality optics along bright LED illumination and high-tech CMOS image sensors guarantee fantastic quality HD images are displayed for every patient.
The ColpoHD is also ideally suited for the examination of sexual assault victims who may be uncomfortable with a traditional Colposcope examination with the physician working through the standard microscope binoculars. The ColpoHD offers distance and a level of privacy for these patients who may be in a vulnerable frame of mind. The ColpoHD also offers optional image archiving and documentation of the examination in high definition image quality which is vital for sexual assault cases.
Features at a Glance
Outstanding image quality.
Perfect HD 1280X720p color definition.
LED high power illumination.
OSD (on screen display) with indication of real magnification.
Zoom and focus operated by 4 commands joystick.
WB (white balance) push bottom control.
Perfect color discrimination due to CMOS HD technology.
Floor stand system with 4 antistatic wheels with break.
Ratched up down pole with double arm for easier and steady positioning.
Magnification progressive. Optical zoom up to 37x and digital zoom up to 70x.
Focus automatic and manual.
Filter optical green.
Led life 50.000 hs.
Optional: monitor stand pole / Endodigi HD recording device.
Outputs – 2x HDMI
Magnification – Progressive magnification. Optical zoom up to 50x and digital zoom up to 128x.
Focus – Automatic and manual
Resolution – 1280 x 720 P
Depth of Field – 250 – 300
Field of View – 8 – 140 mm
Distance – 200 – 320 mm
Filter – Optical green
Light Source – LED High Intensity, 6500 Kelvin
LED Life – 50.000 hrs
Illuminated Control – Electronic adjustment. Constant light color.
Power Supply – 100 – 120 VAC, 50/60 Hz
Floor Mounted with Base with 4 Castors,
LED Light Included on Video Head,
110/220V Power Cable and User´s Guide,
Stand For LCD Monitor and Printer,
Digital Capturing System for Images, Videos and Sounds,
USB 2.0. Includes Main Unit Processor with three Camera Inputs,
Hands Free Microphone and Footswitch.
