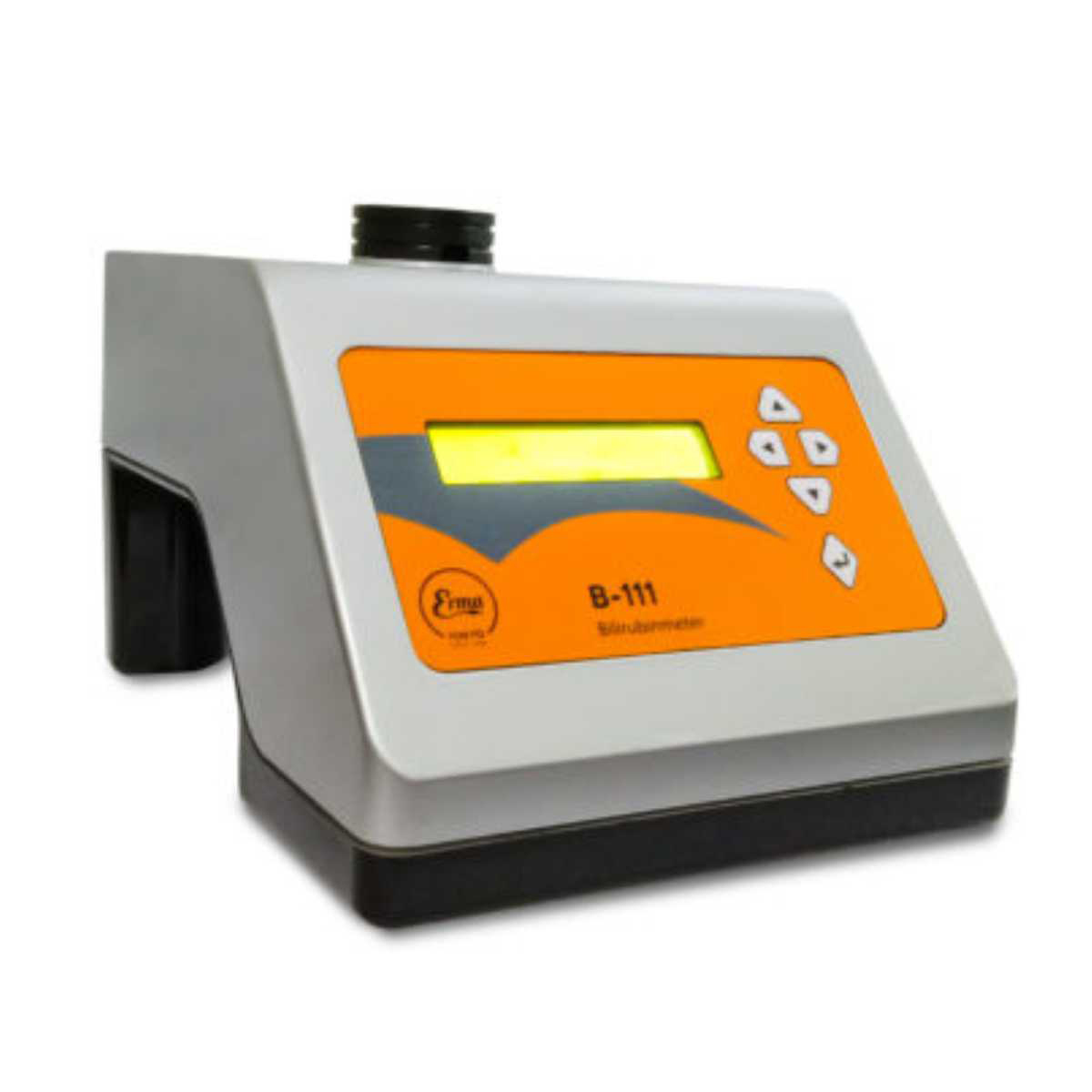

Erma B-111 Bilirubin Meter

The advanced B111 Bilirubinmeter provides fast, accurate results for Total bilirubin level in neonates with only 40μl serum or plasma sample. It determines total bilirubin by dual wavelength photometric

analysis. Suited for pediatric setups, small workload labs & hospitals because of its compact and portable design. Advanced, benchtop and precise instrument for measuring Total Bilirubin.
Feature

Auto zero function: Manual blanking not required
Dual wavelength measurement system:
2 wave lengths 455nm and 575nm
Plays major role to remove the interference caused due to Hemolysis & turbidity of sample
LED Light source:
LED does not require replacement as it lasts longer
As compared to Lamp, LED are more suitable as there is no intensity fluctuations
No warm up time required.
Flexible unit selection:
Two units either mg/dl or umol/L are selectable, ease of reporting
Compact slot for Capillary:
Accuracy of results are directly related to proper alignment of Capillary
B-111 has the easiest mode to ensure precise values
Data transfer:
External device can be connected to instrument through RS232 por
USB port

Technical Specification

Light source – LED
Wavelength – 455nm and 575nm
Net weight – 1kg
Measuring range – 0-30 mg/dl , 510 umol/L
Display – 16×2 LCD module with backlight
Auto calibration – Yes
Sample type – Serum or plasma
Sample volume – 40-80μL
Test time – <5sec Units – mg/dl or umol/L Dimensions – 150 (W) × 115 (H) × 190 (D) mm Interface – RS232 Reading cuvette – Heparinized micro capillary holder Storage temperature – 15-40°c Power supply – DC 9V(DC adapter) Power consumption – <2W
