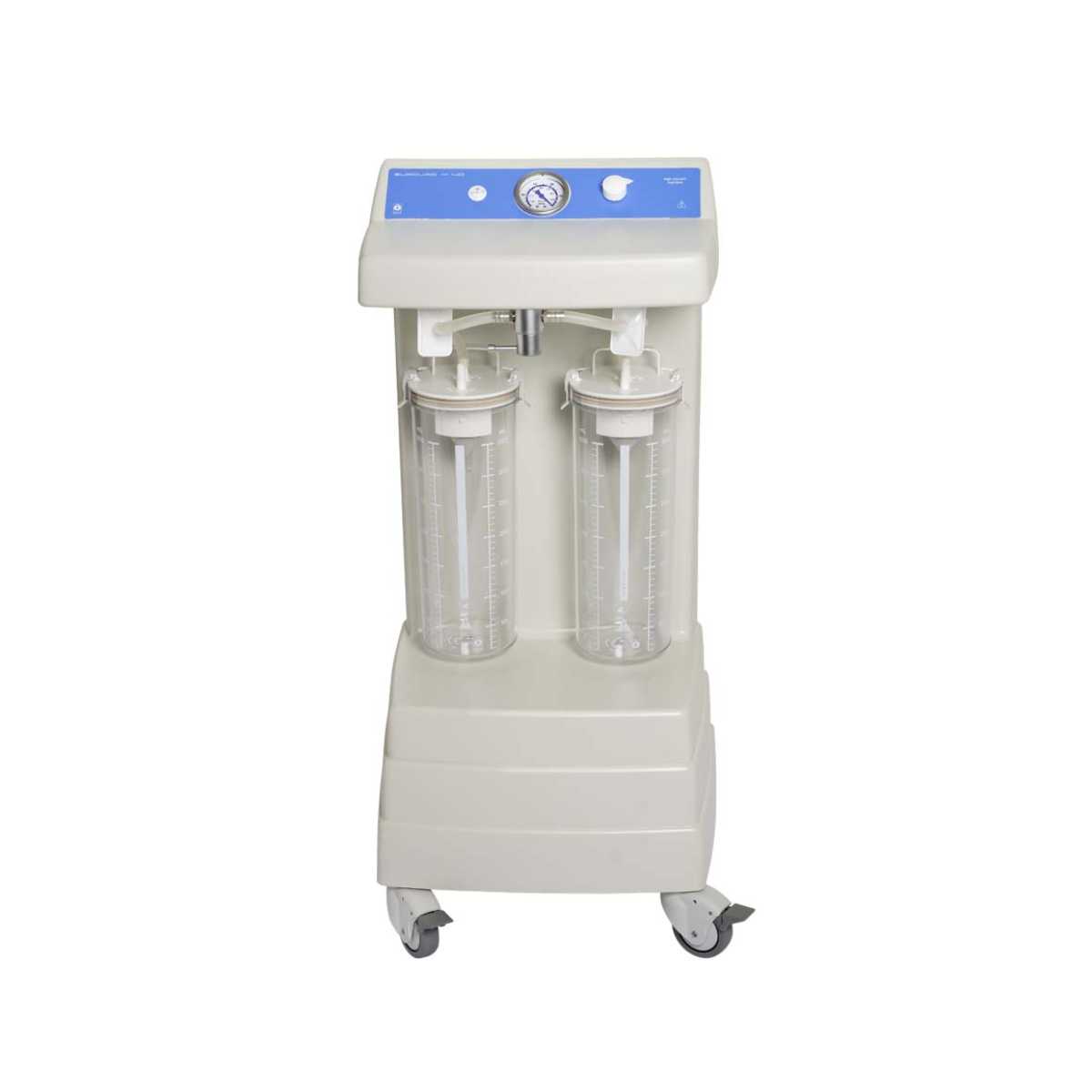

Hersill EuroVac H-40 Surgical Suction Pump

The EuroVac® H-40 surgical suction pumps are electric, high-vacuum and high-flow suction pumps, designed as suction devices for operation rooms where a high-suction capability and a rapid response is required.
Features:

Compact design: high-resistance (impact and scratches) ABS, aluminium reinforced chassis.
Four Ø80 mm: one anti-static and two with brakes.
Long lasting, oil-free piston-type vacuum pump (until 90 L/min). Non-maintenance required.
Precise high-vacuum gauge: 0-100 kPa (0-760 mmHg). High-visibility, Ø67 mm.
Precise, steady suction pressure-regulating knob.
Collection jar with overflow safety valve, in polysulfone or polycarbonate of 4 L (useful capacity 3.5 L). Possibility of using 1 or 2 suction jars. Collection jar support EN ISO 19054:2005.
Available with supports compatible with the main disposable canisters.
Hydrophobic bacteria filter, made in PTFE. With 99% particle retention and  99,99% bacterial challenge efficiency. With PVC or silicone suction tube.
ON/OFF switch.
Interruptor ON/OFF.
3 m electric cable housing.
Selector knob of active collection jar with two positions for double collection jar pump (optional).
ON/OFF foot-operated pedal (optional).
Equipment dimensions: 960 x 430 x 340 mm.
Weight: 22 Kg

Technical Specifications:

 Maximum pump flow
±5% calculated at 230 V / 60 Hz

40 L/min

Maximum vacuum

85 kPa – 850 mbar – 640 mmHg

Noise level

45 ± 1.5 dB (AS)/ 1 m

Power

180 W

Intensity

0.9 A

Voltage

200 – 240 VAC (50-60 Hz)
Available 100 – 120 VAC

Storage temperature

-40 ºC a 70 ºC
-40 ºF a 158 ºF

Operating temperature

7 ºC a 40 ºC
44 ºF a 104 º
