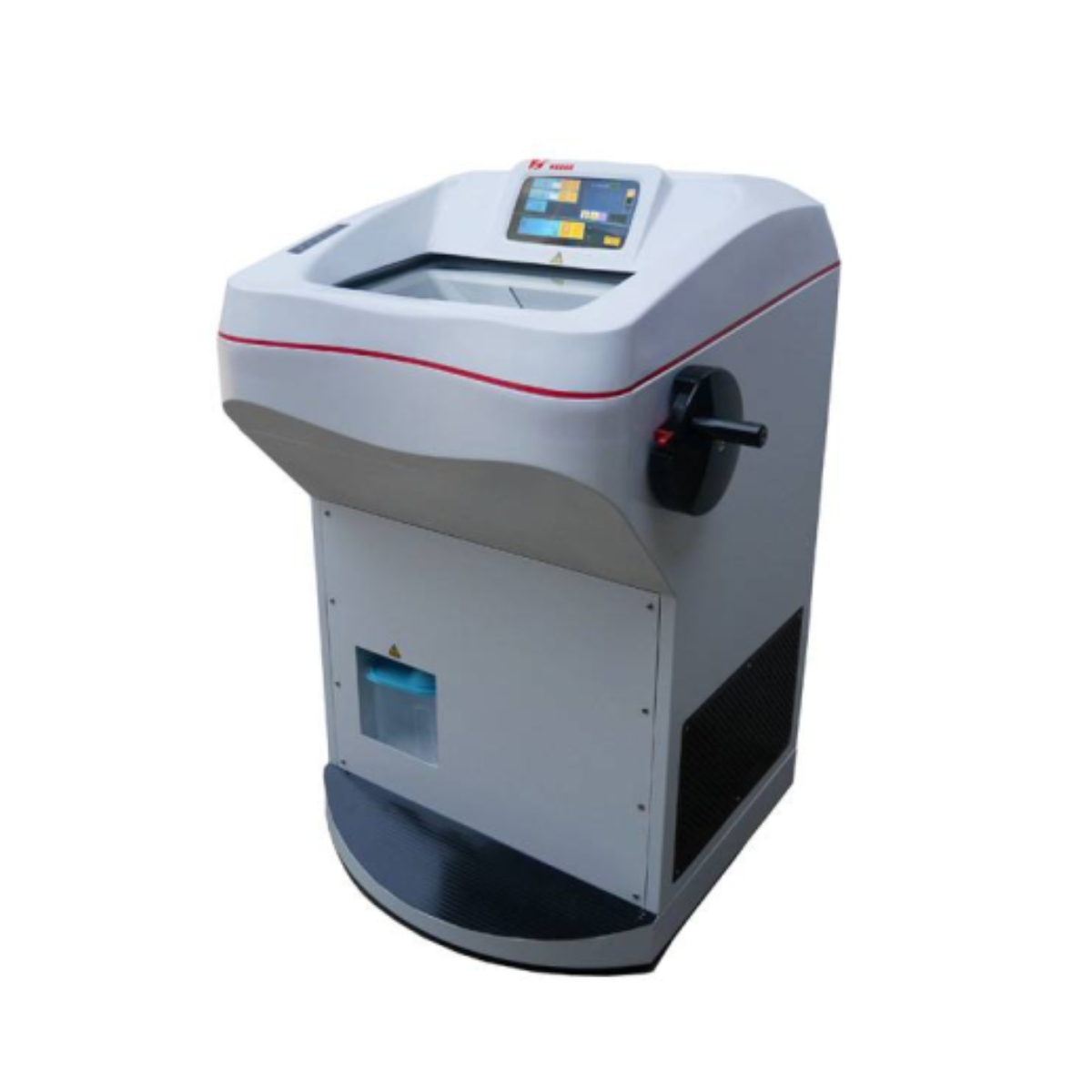

KEDEE KD-3000 Touch Screen Cryostat Microtome

KD-3000 Cryostat Microtome features convenient operation and a modern fully automatic rotary microtome. For extra convenience the system includes a spacious stainless-steel chamber, 24 easily accessible freezing positions and well illuminated cooling chamber that can be effectively cooled down to -40 °C.
■ The 10-inch color LCD touch screen can separately display the total number of slices and the total slice

thickness, slice thickness, specimen retraction value, temperature control, date, time, temperature, timing

sleep switch, defrost and other functions. The operation display can be set to switch between Chinese and

English operation interface, which is convenient for different users all over the world to operate.

■ Humanized hibernation function: After selecting the hibernation state, the temperature of the freezer

compartment can be automatically controlled between -1 and -9°C. After the hibernation is canceled, the

sectioning temperature can be reached within 15 minutes.

■ Imported dual compressors refrigerate the freezing box, freezing table, knife holder, sample chuck, and

tissue presser at five points respectively.

■ The knife holder is equipped with a blade thruster and a knife guard to cover the full length of the

blade, which protects the user safely.

■ Equipped with rubber instrument rack and waste box

■ X-axis 360°, Y-axis 12°universal rotation, snap-on tissue chuck, easier and faster to install the


■ Anti-adhesive tissue flattening device, with specimen refrigeration, the temperature can reach -50°,

which is convenient for freezing the tissue and saving operation time

■ The temperature sensor self-checking function can automatically detect the working status of the


■ Single-layer heated glass door, effectively preventing water mist condensation

Histology Systems–Kedee Instruments

■ Hand wheel positioning 360° locking function at any point

■ The sample chuck travels to the limit position and automatically returns to the starting position

Technical Specifications:

■ Chamber temperature :10℃ ~ -50℃

■ Freezing shelf temperature:0℃ ~ -50℃

■ Temperature control range of sample chuck: 10℃ ~ -50℃

■ Additional semiconductor refrigeration in the freezer: -60℃

■ Number of freezing station: 36 pcs

■ Pelletier number: 8 pcs

■ Semiconductor fast cooling working time: 15 minutes

■ Maximum specimen size: 55mm×80mm

■ Vertical stroke: 65mm

■ Horizontal stroke: 22mm

■ Electric feed speed: 0.9mm/s、 0.45mm/s

■ Disinfection method: UV

■ Section thickness range: 0.5μm~100μm Adjustable0.5μm~5μm Increment0.5μm

5μm~20μm Increment1μm

20μm~40μm Increment2μm

40μm~100μm Increment5μm

■ Trimming thickness range :10μm~600μm Adjustable

10μm~50μm Increment5μm

50μm~100μm Increment10μm

100μm~600μm Increment50μm

■ Specimen retraction: 0~100μm Adjustable, Increment5μm

■ Dimension size(mm): 700×760×1160mm

■ Weight: 135 KGS
