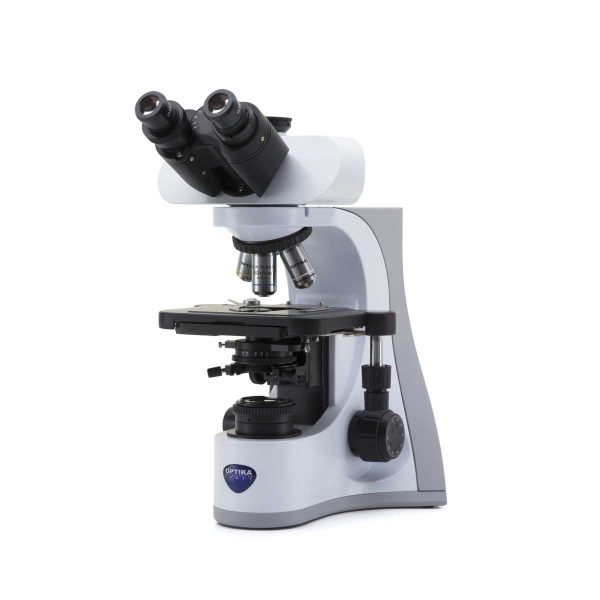

Optika B-510ASB Trinocular Phase Contrast Microscope

Advanced routine laboratory microscope for brightfield and phase contrast observations with IOS W-PLAN objectives and rackless stage. Ideal for Asbestos analysis in accordance to international rules with 12.5x eyepieces and Walton & Becket graticule to perform perfect asbestos fibers analysis at a glance. The high-efficiency X-LED3 makes it reliable for all transmitted light observations.
Features:

Observation mode: Brightfield, phase contrast.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and WF12.5x/18 mm with dioptric adjustment, one with Walton & Beckett graticule.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:

– IOS W-PLAN 4x/0.10

– IOS W-PLAN 10x/0.25

– IOS W-PLAN PH 40x/0.65

– IOS W-PLAN 100x/1.25 (Oil)

All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With 40x phase contrast slider.
Transmitted illumination (Full Koehler type):  X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.


Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Phase contrast (Positive type)
Yes


Darkfield
As optional


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Trinocular (Siedentopf)


Split ratio
50/50


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
50-75


Tube inner diameter (mm)
30

Eyepieces
Field number (mm)
22


Magnification
10x


Planar type
Yes


Micrometric scale
As optional


Diameter of micrometer glass (mm)
26


High eyepoint (for glass wearers)
Yes


Rubber cup
Yes


Retractable protections
Yes

Nosepiece
Positions
Quintuple


Reversed
Yes


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system


Anti-fungus treatment
Yes


Parfocal distance (mm)
45


Standard magnifications
40x-1000x


Type
IOS W-PLAN


Objectives included
4x/0.10, W.D. 17.3 mm
10x/0.25, W.D. 10 mm
PH 40x/0.65, W.D. 0.54 mm
100x/1.25 (Oil),
W.D. 0.13 mm

Stage
Type
Double layer


Dimensions (mm)
233×147


Moving mechanism
Rackless


Moving range (mm)
78×54


Material
Anti-scratch painting


Specimen holder
Yes


Slide number
2


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Multiple
Position
Type
Abbe.
Brightfield – Phase contrast


Number of positions
2 (BF, 40x)


Numerical aperture (N.A.)
1.25


Magnification scale for simplified positioning
Yes


Removable
Yes


Diaphragms
Iris


Centrable
Yes


Focusable
By rack and pinion

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
25


Fine total travel (per single rotation) (mm)
0.2


Fine graduations
100


Fine resolution (µm)
2


Upper stop to prevent contact
Yes


Adjustable tension
Yes


Flat knob for ergonomy
Yes

Transmitted
Illumination
Kohler illumination
Full


Type
X-LED


X-LED type
X-LED3


Light source power (W)
3.6


Brightness control
Manual



Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
6

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
6 Vdc  2.5A

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


Tension adjustment tool
Yes


Allen wrench
Yes


Centering telescope
Yes


Green filter
Yes


User Manual
Digital version (downloadable)

Additional Information

Heating stage (as optional).
External rechargeable battery pack (as optional).

Product Weight
Height (mm)
405


Width (mm)
235


Depth (mm)
370

Product Weight
(kg)
9

Description

  • Observation mode: Brightfield, phase contrast.
  • Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
  • Interpupillary distance: Adjustable between 50 and 75 mm.
  • Dioptric adjustment: On the left eyepiece tube.
  • Eyepieces: WF10x/22 mm, high eye-point and WF12.5x/18 mm with dioptric adjustment, one with Walton & Beckett graticule.
  • Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
  • Objectives:
    – IOS W-PLAN 4x/0.10
    – IOS W-PLAN 10x/0.25
    – IOS W-PLAN PH 40x/0.65
    – IOS W-PLAN 100x/1.25 (Oil)
    All with anti-fungus treatment.
  • Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
  • Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
  • Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With 40x phase contrast slider.
  • Transmitted illumination (Full Koehler type):  X-LED³ with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
