Precision UK ltd EN 13348 DEGREASED MEDICAL COPPER TUBE
CPX copper tube is designed for use in Medical Gas Pipeline System (MGPS) installations and incorporates the specialist requirement of the MGPS industry to include cleanliness, packaging and usability required to attain the levels of quality as stated particularly in HTM 02-01.
Specific Benefits Include:
Each pipe is cleaned to have a maximum carbon level 0.20mg/dm?.

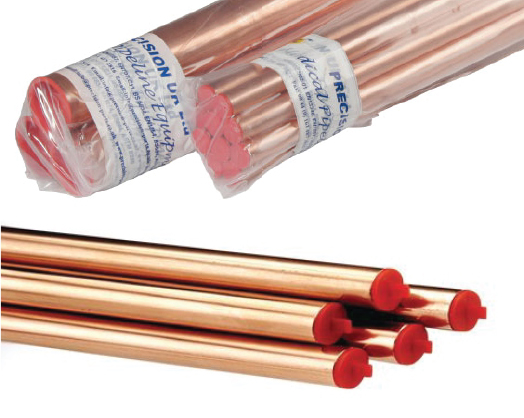

Each pipe is individually end capped and bundled in sealed polythene bags to maintain cleanliness.
Chemical composition CU.DHP to ISO 1190-1/CW024A to EN1412.
All copper tube is manufactured under strict quality control procedures to ISO 9001: 2008 and CE marked under the Medical Device Directive 93/42/EEC (CE0086).
Batch numbering for traceability is included on all pipework.
Labelling on the copper tube will contain the following details: Date, Code of Manufacture, EN 13348, Tube Size, Manufacturer, Temper, British Standard Institute BSI Kitemarked, (CE0086).
SIZE RANGE
Part no.
Diameter mm
Thickness mm
Length mtr
Tubes Per Bundle
Max Working pressure Bar
10CP
10
0.6
6
10
77
12CP
12
0.6
6
10
63
15CP
15
0.7
6
10
58
22CP
22
0.9
6
10
51
28CP
28
0.9
6
5
40
35CP
35
1.2
6
1
42
42CP
42
1.2
6
1
35
54CP
54
1.2
6
1
27
67CP
67
1.2
6
1
26
76CP
76
1.5
6
1
29
108CP
108
1.5
6
1
16
Description
Description
Description
CPX copper tube is designed for use in Medical Gas Pipeline System (MGPS) installations and incorporates the specialist requirement of the MGPS industry to include cleanliness, packaging and usability required to attain the levels of quality as stated particularly in HTM 02-01.
Specific Benefits Include:
- Each pipe is cleaned to have a maximum carbon level 0.20mg/dm?.
- Each pipe is individually end capped and bundled in sealed polythene bags to maintain cleanliness.
- Chemical composition CU.DHP to ISO 1190-1/CW024A to EN1412.
- All copper tube is manufactured under strict quality control procedures to ISO 9001: 2008 and CE marked under the Medical Device Directive 93/42/EEC (CE0086).
- Batch numbering for traceability is included on all pipework.
- Labelling on the copper tube will contain the following details: Date, Code of Manufacture, EN 13348, Tube Size, Manufacturer, Temper, British Standard Institute BSI Kitemarked, (CE0086).
SIZE RANGE
| Part no. | Diameter mm | Thickness mm | Length mtr | Tubes Per Bundle | Max Working pressure Bar |
|---|---|---|---|---|---|
| 10CP | 10 | 0.6 | 6 | 10 | 77 |
| 12CP | 12 | 0.6 | 6 | 10 | 63 |
| 15CP | 15 | 0.7 | 6 | 10 | 58 |
| 22CP | 22 | 0.9 | 6 | 10 | 51 |
| 28CP | 28 | 0.9 | 6 | 5 | 40 |
| 35CP | 35 | 1.2 | 6 | 1 | 42 |
| 42CP | 42 | 1.2 | 6 | 1 | 35 |
| 54CP | 54 | 1.2 | 6 | 1 | 27 |
| 67CP | 67 | 1.2 | 6 | 1 | 26 |
| 76CP | 76 | 1.5 | 6 | 1 | 29 |
| 108CP | 108 | 1.5 | 6 | 1 | 16 |
