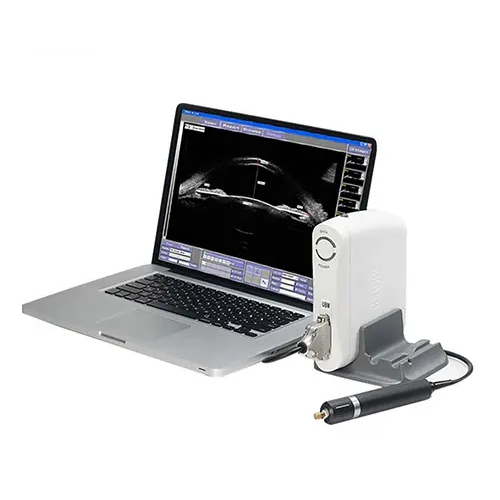

UBM Ultrasound Biomicroscopy Machine

UBM Machine Features:

1.Linear scan and handheld probe

2.Sulcus to sulcus measurement

3.Full image mode and angle image mode display

4.AOD and ACA measurement

5.PDF report output
Technical Specification:

Frequency
50MHz/35MHz(optional)

Scanning Mode
Linear Scanning

Scanning Range
16mm*9mm; 10mm*6.5mm

Image Resolution(full screen)
50um

Output
PDF report output

Scanning Lines
1024 lines, 15 um between each, high density & high resolution

Geometry Distortion
Linear scan, no distortion, no compensation, undistorted image

Probe
Multi-Dimension, precise locating articulated arm

Measurement
Distance, angle , perimeter , area

Display colors
12 false colors

Display Mode
UBM, UBM A

Magnify
Special independent ultrasound magnifies system, better image in Anterior Segment.

Eye Fixation
Unique Eye position and LED system

Working Platform
Windows XP, VISTA, WINDOWS7

Image Process
Length, angle measurements
