Uzumcu DL-62C LED Operating Lights Twin Dome…

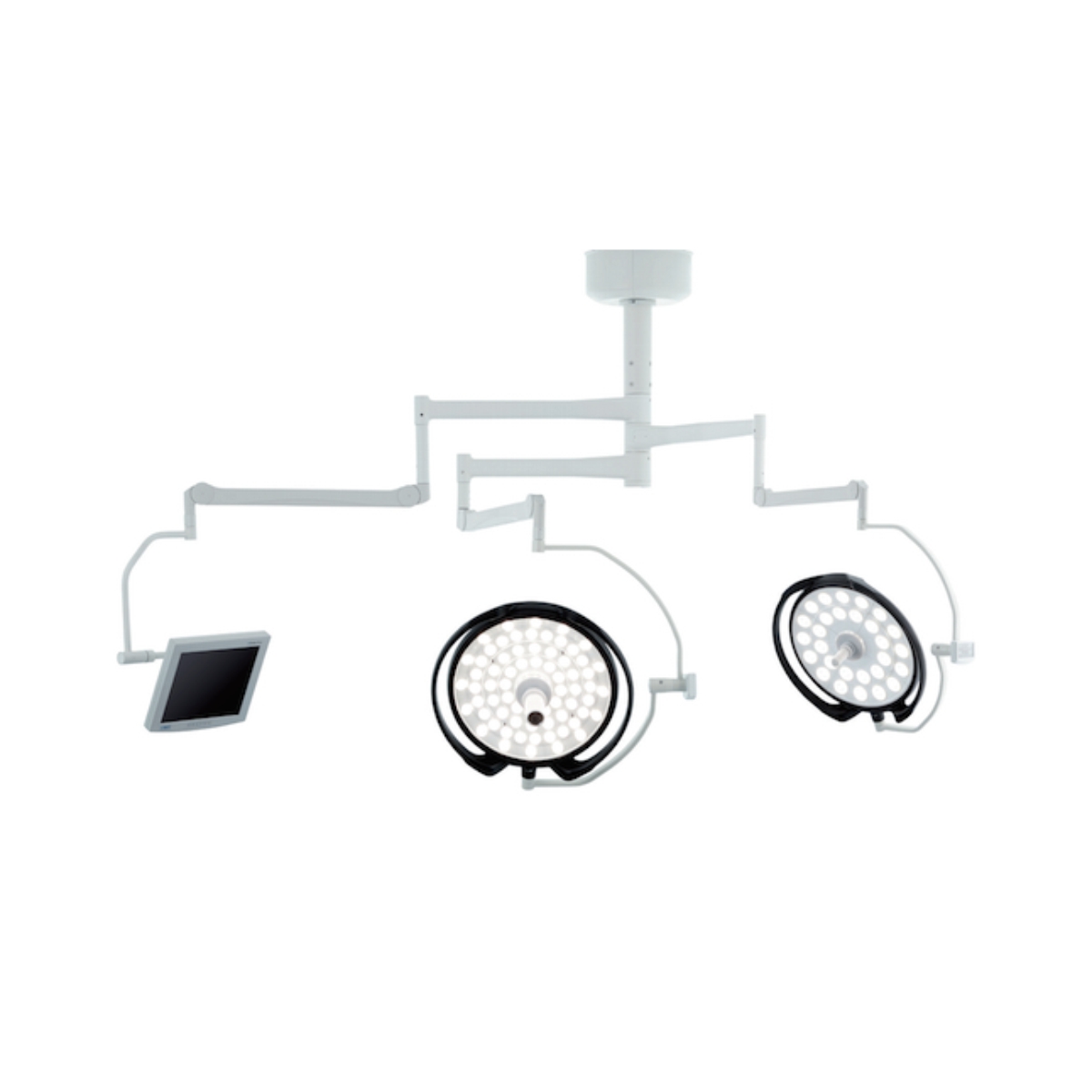

The DL-62C LED surgical light offers an illumination intensity of 160,000 LUX for the main lighthead and 120,000 LUX for the satellite lighthead, with an adjustable color temperature of 3500 K – 5000 K and lifetime of 50,000 hours. It also features a 4.3-inch LCD touchscreen for controlling all functions, along with a camera and arm-mounted medical monitor for monitoring and recording operations.
Light Features
LED Technology

High LED technology fulfilling lighting requirements of any kind of operation.
Maximum lighting level by single button.
LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.

Special Head Design

Head design with low aerodynamic resistant protecting laminar flow of surgical space.

Sensor Technology & Endoscopy Mode

Sensor technology enabling automatic light off of related LED sections and preventing formation of shade on the lighting area when faced with a barrier.
Sustainable functionality for endoscopic and minimally invasive surgical procedures by a single light function (endolight function).
Adjustable color temperature between 3500-5000 °K.
LCD colour touchscreen control panel controlling all functions.

Camera System & Focusing

Camera and medical monitor practically integrable with the lamp head for training purposes. It enables monitoring and recording operations.
Manual focus function can be adjusted from the handle or the control panel.

Alternative Control Panels

4.3” LCD touchscreen and membrane control panel with led indicators are avaliable for all lamp heads.
Model names with “A” refer to Analog membrane control panel and with “D” refer to Digital touchscreen control panel.

Technical Specifications:

Diameter of lighthead: Ø650 mm
Illumination power, in 1 m: 160.000 Lux
Color temperature: 3500 K – 5000 K
Color rendering index, Ra CRI: 96%
Dimming Range: % 1 – 100
Adjustable focus diameter: 120 – 300 mm


Click Here To Download Catalogue

Description

  • High LED technology fulfilling lighting requirements of any kind of operation.
  • Maximum lighting level by single button.
  • LED bulbs of the lamp may be changed individually and have 50.000 hours of lifetime.
