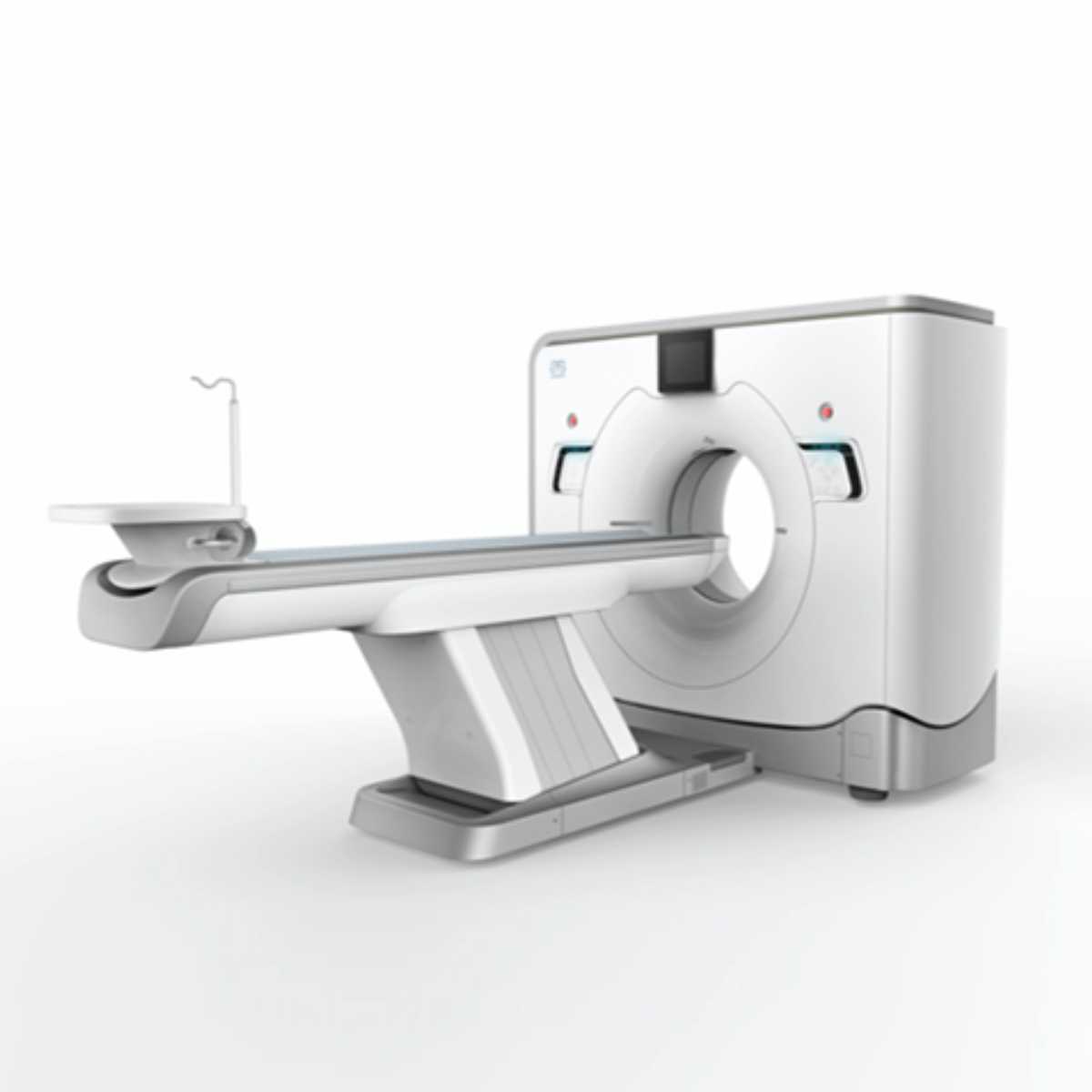

Anke Anatom 64 Clarity Multi-Slice Spiral CT Scan

Categories: , , SKU: ZN2024303 Tags: ,

The ANATOM 64 CT scanner is the latest innovation for cardiac imaging based on Precision Platform system. The excellent design of Ahart technology which innovatively combined single spiral scan + gated imaging + mA modulation for easy heart imaging at extremely low radiation dose. We provide you ANATOM 64 Clarity/Precision of two models which are low/high configurations for preferences. It also offers you conventional clinical applications of low dose, better image quality and faster exams.
Features:

Modularized OptiWave HD detector features low-cost & easy maintenance, high spatial resolution and long lifetime
Admir3D iterative technology delivers optimal dose efficiency and noise reduction without compromising image quality
High configurations of main components ensure the best results and maximum patient throughput
Uniquely and creatively uses 140kV and 80kV dual energy scan mode for brain imaging on 16-slice CT to offers you extraordinary image quality both in low and high density resolutions
AdoseTM mA modulation ensures you low dose imaging without compromising image quality particularly useful in pediatric applications
Equipped with dedicated Abast and Amast for bone and metal artifacts
The brilliant Ahart technology enables you to experience so easy and low-dose cardiac imaging applications

Technical Specifications:

Model
ANATOM 64 Precision
ANATOM 64 Fit

Rack type
Low pressure slip ring
Low pressure slip ring

Scan aperture
70cm
70cm

Rack Physical inclination
± 30 °
N.A

Rack digital inclination
± 50 °
± 50 °

cooling method
Air-cooled
Air-cooled

Focus to the center distance
56 cm
53 cm



Maximum power (non-equivalent)
80kW
42kW

Votage (kV)
80kV / 100kV / 120kV / 140kV
70kV / 80kV / 100kV / 120kV /
140kV



Heat capacity
8MHU
5.0MHU

Heat dissipation rate
931 kHU / min
748kHU / min

cooling method
Oil cool
Oil cool

Large focus size
1.1mm × 1.2mm
1.2mm × 1.4mm

Small focus size
0.6mm × 1.2mm
0.7mm × 0.8mm

Tube current range
10-670mA
10-350mA



Detector type
Optiwave detectors
Optiwave detectors

Number of Z-axis
32
32

The width of the Z-axis
20mm
20mm

The number of elements per row
912
848

Total number of detectors
29184
27136

Acquisition mode
64×0.625, 32×0.625,
16×0.625
64×0.625, 32×0.625,
16×0.625



Scanning range
1800mm
1800mm

Horizontal positioning accuracy
± 0.25mm
± 0.25mm

weight capacity
205kg
205kg

Minimum height
43cm
43cm

Anti – collision protection device
Yes
Yes

Foot control switch
Yes
Yes

IV rack
Yes
Yes



CPU
3.5GHz
3.5GHz

RAM
16 GB × 4
16 GB × 4

Hard drive capacity
1T × 2
1T × 2

Display size
24 inch LCD monitor
24 inch LCD monitor

Display resolution
1920 × 1200
1920 × 1200

Computer operating system
Windows 7
Windows 7

Image reconstruction speed
65 frames/ second
65 frames/ second

Number of image store
1000000
1000000

Data external storage mode
CD / DVD / USB
CD / DVD / USB



Minimum Scan Time of 360 degree
0.39sec
0.75sec

Sub-millimeter acquisition layers
64
64

Double sub-millimeter acquisition
layers
64
64

Thinnest acquisition thickness
0.625mm
0.625mm

The thinnest reconstruction
thickness
0.3125mm
0.625mm

Conventional reconstruction
thickness (mm)
0.3125 mm, 0.625 mm, 1.25 mm, 2.5
mm, 5.0 mm, 7.5 mm, 10 mm
0.625 mm, 1.25 mm, 2.5 mm, 5.0
mm, 7.5 mm, 10 mm

The reconstruction matrix
512 x 512, 1024 x 1024
512 x 512, 1024 x 1024

Display matrix
1024 × 1024
1024 × 1024

Max FOV
52cm
50cm

The maximum display field of view
70cm
50cm

Maximum scan length
1800mm
1800mm

Maximum continuous helix scan
time
120s
120s

Pitch range
0.5-1.5
0.5, 1.0, 1.5



High contrast resolution
21 Lp / cm @ 0% MTF
21 Lp / cm @ 0% MTF

Low contrast resolution
2mm @ 0.3%
2mm @ 0.3%

Image noise
≤ 0.25
≤ 0.29



MPR
Yes
Yes

CPR
Yes
Yes

SSD
Yes
Yes

VR
Yes
Yes

MIP
Yes
Yes

MinIP
Yes
Yes

Virtual endoscopy
Yes
Yes

CT angiography
Yes
Yes

Tissue segmentation
Yes
Yes

One-key bone removal
Yes
Yes

Automatically patient table removal
Yes
Yes

Contrast Agent Automatic Tracking
Technology- bolus tracking
Yes
Yes

Automatic linkage trigger
technology
Yes
Yes

Cine mode display
Yes
Yes

Bone artifact suppression technique
AbastTM
AbastTM

Metal artifact suppression technique
AbastTM
AbastTM

Iterative reconstruction technique
Admir3D global iteration
Admir3D full-domain iteration

Low – dose children ‘s scanning
technology
Yes
Yes

Low – dose lung scan
Yes
Yes

Gray matter enhancement
technology
AccuHead
AccuHead

High resolution imaging of the lung
AccuLung
AccuLung

Inner ear high resolution imaging
AccuOtica
AccuOtica

Body high resolution imaging
AccuBody
AccuBody

Bone high resolution imaging
AccuBone
AccuBone

Head dual-energy imaging
Ahead
Ahead

CT perfusion imaging
Optional
Optional

Quantitative analysis of blood
vessels
Optional
Optional

Heart coronary artery imaging
Aheart
N.A

ECG gated
Yes
N.A

Low dose cardiac scan
Yes
N.A



Green energy saving technology
AccuSaving
AccuSaving

Dual-energy scan technology
Optional
Optional


Click Here To Download Catalogue

Description

  • Modularized OptiWave HD detector features low-cost & easy maintenance, high spatial resolution and long lifetime
  • Admir3D iterative technology delivers optimal dose efficiency and noise reduction without compromising image quality
  • High configurations of main components ensure the best results and maximum patient throughput
  • Uniquely and creatively uses 140kV and 80kV dual energy scan mode for brain imaging on 16-slice CT to offers you extraordinary image quality both in low and high density resolutions
  • AdoseTM mA modulation ensures you low dose imaging without compromising image quality particularly useful in pediatric applications
  • Equipped with dedicated Abast and Amast for bone and metal artifacts
  • The brilliant Ahart technology enables you to experience so easy and low-dose cardiac imaging applications
