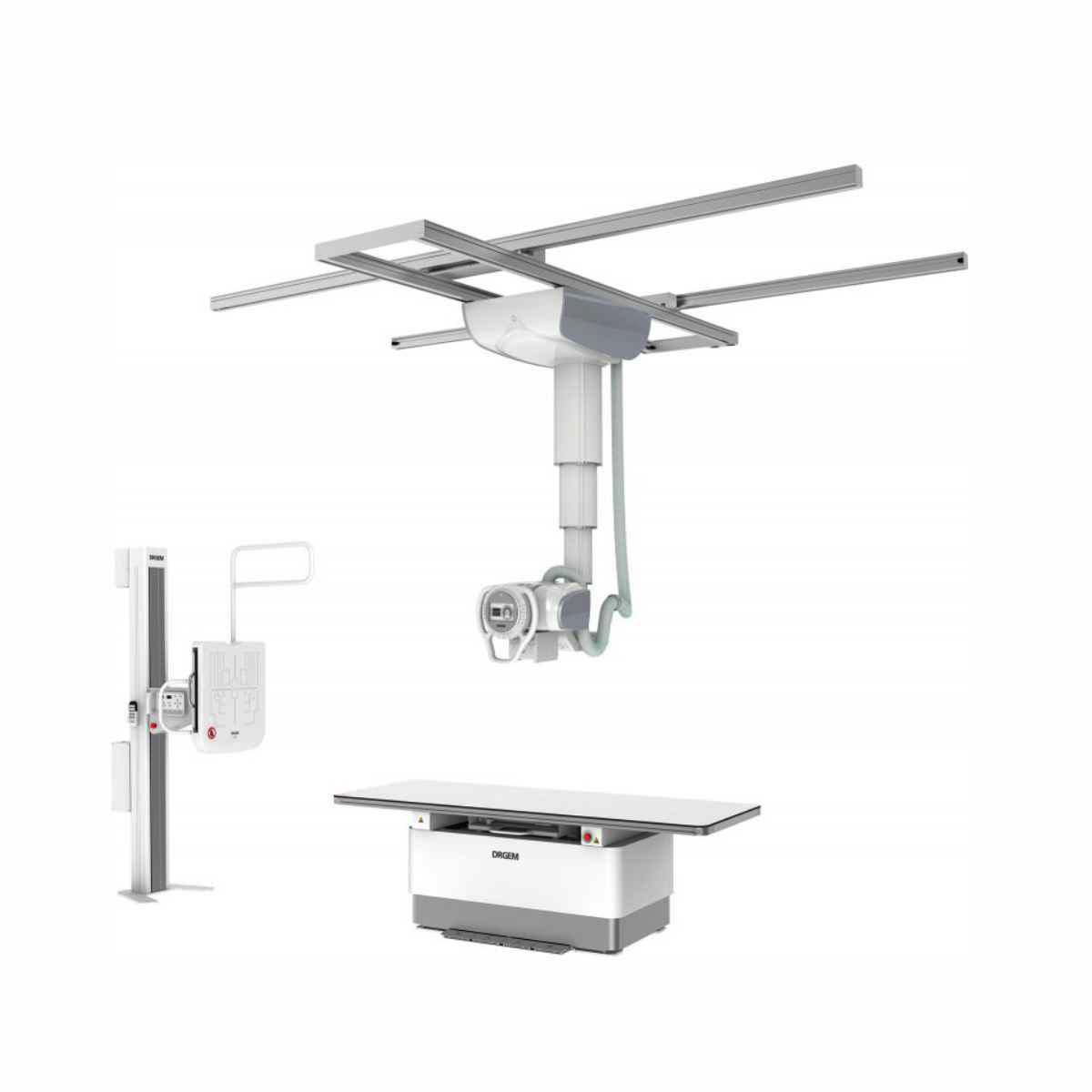

DrGem Ceiling Analogue X-ray Machine

DrGem Ceiling Analogue X-ray Machine is a diagnostic radiography system X-ray Machine that provides reliable high quality radiographic images with a reduced dose. The reliable high-frequency x-ray generators that are known worldwide for their excellent performance, lifetime and stability. Patient tables and wall stands are also offered.
Features of DrGem Ceiling Analogue X-ray Machine

TS-CSA-A (Vertical movement, 1.6m stroke, rail length 3x4meter) including HV cable 15m
WBS-TA:  Vertical movement

V Stroke:1,450mm in Uprigh Bucky Position,
1,526mm in Horizontal Bucky position.

PBT-4 is a 4 way Floating Tabletop with. A large tabletop with extended travel enables all radiography studies with minimal patient movement. Fully fat tabletop without a frame on the edge makes cleanliness and odors free

Technical Specifications of DrGem Ceiling Analogue X-ray Machine

Power Rating – 32KW
Generator – GXR-32S
Rotor – Dual Speed Starter(DSS)
Input Power – 400/480VAC, Three phase
Line Frequency – 50/60Hz
X-ray tube – DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage – 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output – 640mA@81kV,  500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range – 1ms to 10s
mAs Range – 0.1 to 800mAs
Reproducibility – Coe­cient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01 Accuracy – kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs) Linearity – Coe­cient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs Mechanical Parts: -TS-CSA-A (Vertical movement, 1.6m, stroke rail length 3x4meter) including HV cable 15m – PBT-4: 4 way Floating Tabletop with Elevating Feature (66cm). – WBS-TA:   a.  Vertical    movement   V Stroke:1,450mm in Upright Bucky Position, 1,526mm in Horizontal Bucky position. – HVC-15: 15M HV cable – Auto Collimator   Click Here To Download Catalogue
