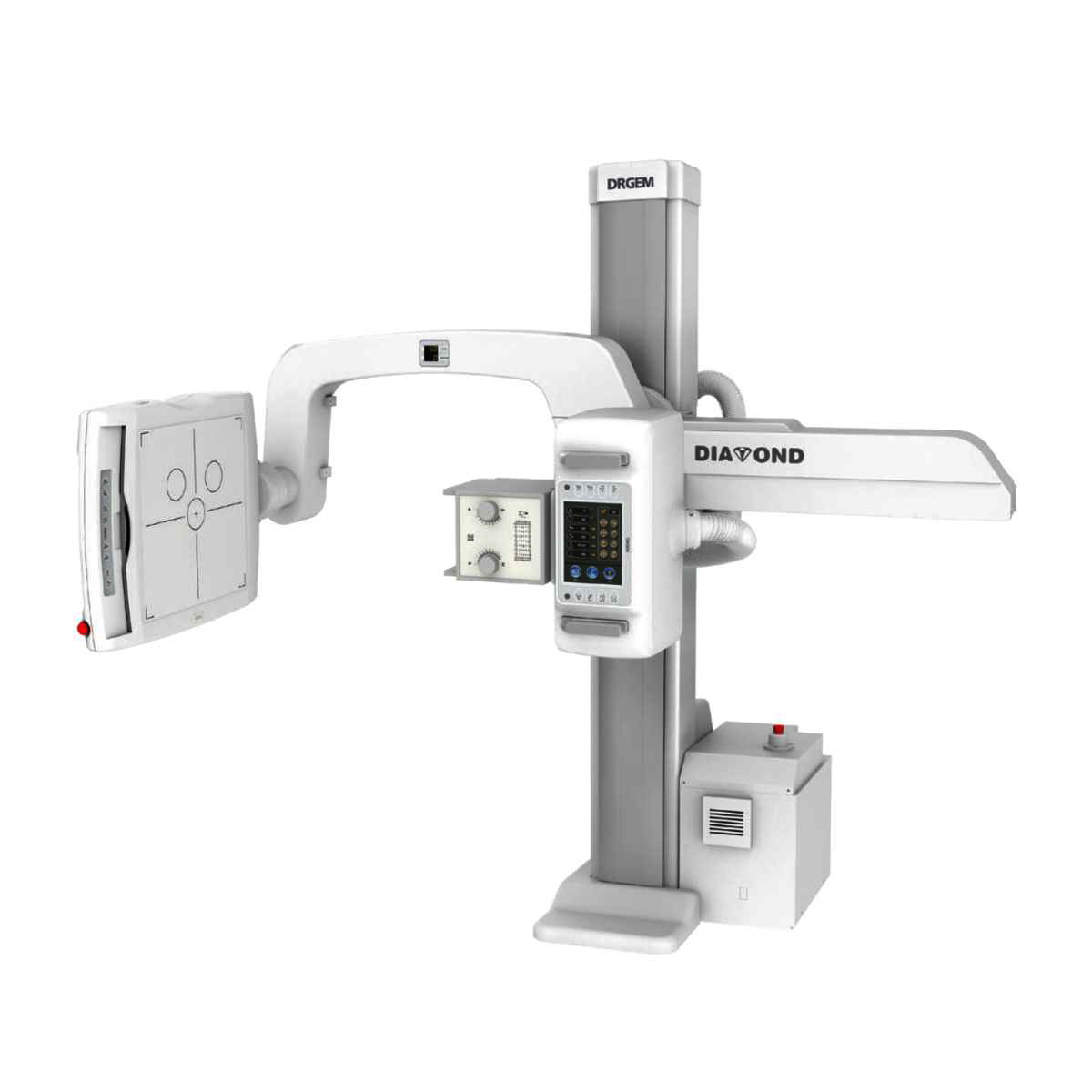

DrGem Diamond All-In-One Digital X-ray Machine

DrGem Diamond All-In-One Digital X-ray Machine is a fully automatic digital radiography system providing state-of-the-art image quality, image processing and user interface. With a wide selection of anatomical studies on the imaging software, DIAMOND automatically sets up the x-ray generator’s pre-programmed exposure technique settings, motorized radiographic stand positioning, x-ray collimation and post-image processing for the selected study. Specifically designed to increase workflow, this fully digital system offers convenient auto-positioning and advanced image processing to achieve big performance with little effort.
Features of DrGem Diamond All-In-One Digital X-ray Machine:
Outstanding Image Quality –

Digital radiography via ­at panel detector improves your workflow, exam speed and comfort with efficiency. Digital ­at panel detector with Csl screen provides excellent spatial resolution, MTF, DQE and stability based on ne pixel pitch. A 3-field ion-chamber is provided for AEC function.
Automatic Collimation –

Automatic x-ray eld size control of the motorized collimator corresponds to dierent SIDs. Includes user adjustable lamp timer with on/oswitch.
Automatic Positioning –

DIAMOND is a fully-automatic diagnostic system with motorized movement and pre-programmed data for automatic positioning that can be easily reprogrammed by the operator.
Seven safety sensors have been integrated into the DIAMOND system to protect patients from accidental collision.

Automatic Stitching –

DIAMOND 5A provides outstanding automatic stitching function via source tilting for creating one long composite image.
DIAMOND Positioning Guide –

The U-arm rotation ranges from +120 ° to +30 ° with SID movements from 100cm to 180cm. The mobile patient table can also be used to take patient images in a variety of positions for a total of over  fifteen different positions (Chest PA, Skull Towne’s, Abdomen Supine, Hand AP, C-T Spine Swimmers and Abdomen Decubitus etc.)

Included – Software, HP Laptop Computer

– CPU≥3.2GHz

– Memory capacity:≥4GB

– Hard drive capacity :≥500 GB

– Resolution: 1280 x 1024

– Display size: 21 inch color LCD screen

– 64 bit Windows 10 operation system

– Core: i5
Technical Specification:

Power Rating – 52KW
mA – 10 to 640mA
mAs – 0.1 to 500mAs
kV – 40 to 150kV, 1kV Step
Generator – GXR-52
Rotor – Dual Speed (High and Low)
Input Power – 400/480VAC±10%, 3Ø
Line Frequency – 50/60Hz
X-ray tube – DXT-12M 0.6/1.2mm, 300kHU


Click Here To Download Catalogue

Description

  • DIAMOND is a fully-automatic diagnostic system with motorized movement and pre-programmed data for automatic positioning that can be easily reprogrammed by the operator.
  • Seven safety sensors have been integrated into the DIAMOND system to protect patients from accidental collision.
