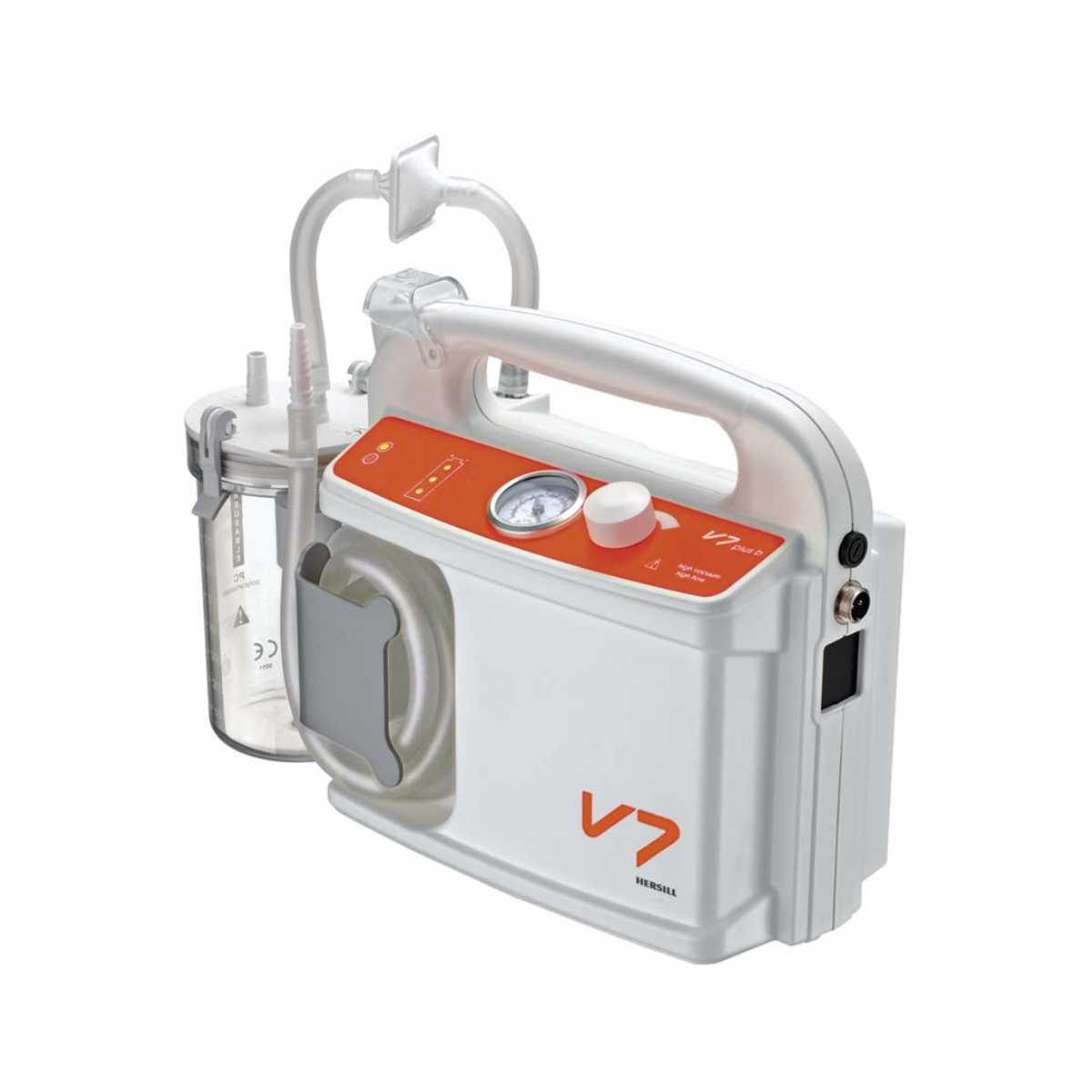

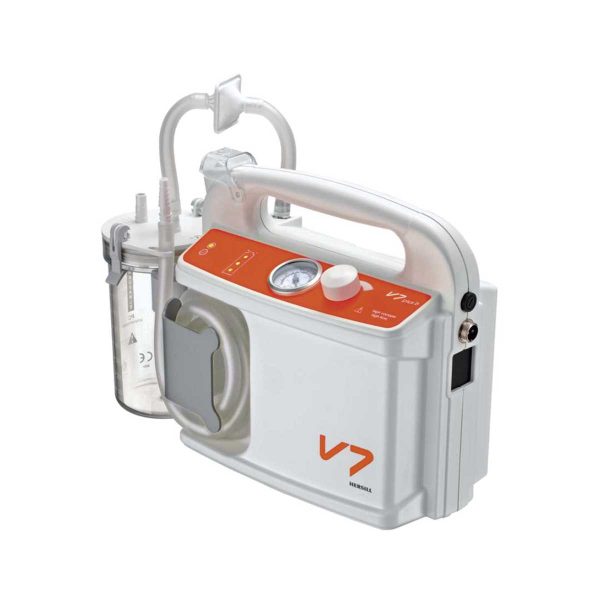

Hersill V7 Plus B Emergency High Vacuum Portable Suction Machine

The V7 range of high vacuum portable suction units are ideal for use in healthcare facilities (surgery, gynaecology, ENT), homes, ambulances, transportation and use in emergency situations.
Features:

ABS ergonomical case and ancorage system tested to 10 g.
Long life medical grade piston type suction pump. Oil-free and maintenance-free.
Vacuum gauge of 0-100 kPa (0-760 mmHg).
Precise and stable vacuum control knob.
Indicator lights: ON, flashing, vacuum level, vacuum indicator and battery status.
Maximum noise level: 49 + 1,5 dB (depending on model).
Battery for long duration autonomy (consult models in which it is included). LED battery level lights.
Collection jar with overflow safety valve in polycarbonate or polysulfone of 1 L (useful capacity 0.75 L) PC1/PSU1 or 1.75 L (useful capacity 1.30 L) -PC2/PSU2.
Also available with holders compatible with the main disposable canister
Hydrophobic bacteria filter, made of PTFE. With an efficiency of 99% in the retention of particles and bacteria of 99.99%. With PVC suction tube.
ON/OFF swith with moisture protection.
Equipment dimensions: 385 x 155 x 255 mm.

Technical Specifications:

Power supply

Flow rate

Maximum vacuum

V7 ac

220 VaC
250 W

20 L/min

80 kPa
600 mmHg

V7 dc

12 VDC
18 W

14 L/min

75 kPa
562 mmHg

V7 plus ac

220 VAC
120 W

30 L/min

84 kPa
630 mmHg

V7 plus dc

12 VDC
85 W

30 L/min

84 kPa
630 mmHg

V7 plus b

12 VDC
85 W
Battery

30 L/min

84 kPa
630 mmHg

V7 plus b emergency

12 VDC
85 W
Battery

30 L/min

84 kPa
630 mmHg

V7 mx

110/240 Vac
12 VDC
160 W (AC) /
84 W (DC)
Battery

30 L/min

84 kPa
630 mmHg
