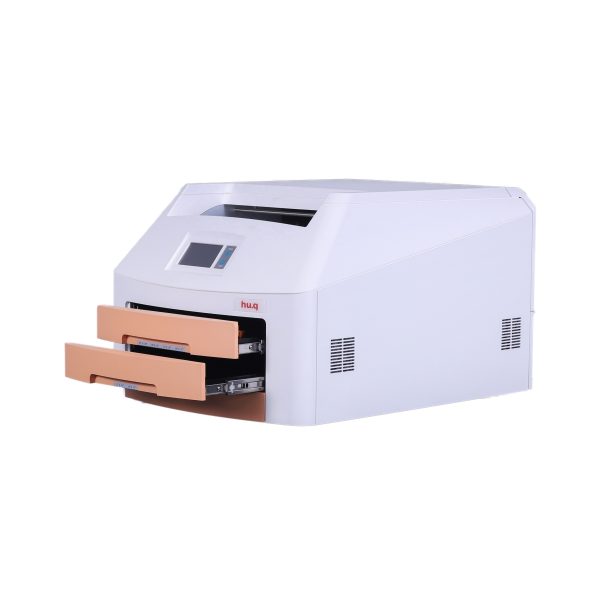

HU.Q hq-760dy Dry Image X-Ray Film Printer (Mammo)

The HQ-760DY Dry Imager is a thermo-graphic film processor designed for digital radiography imaging. It is the one and only domestically engineered medical dry thermal imager.  The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Mammography, Orthopaedics, Dental Imaging and more. The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
– Supports Mammography

– Dry thermal technology

– Daylight load film cartridges

– Double tray, supports 4 film sizes

– Speed printing, higher efficiency

– Economical, stable, reliable

– Compact design, easy installation

– Straight forward operation, user-friendly
Technical Specification:

Print Technology

Direct thermal (dry, daylight-load film)

Spatial Resolution

508dpi (20pixels/mm)

Grayscale Contrast Resolution

14 bits

Film Tray

Two supply trays, 200-sheet capacity total

Film Sizes

8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’

Applicable film

Medical Dry Thermal Film (blue or clear base)


10/100/1000 Base-T Ethernet (RJ-45)

Network Protocol

Standard DICOM 3.0 connection

Image Quality

Automatic calibration using built-in densitometer

Control Panel

Touch Screen, Online Display, Alert, Fault and Active

Power Supply

100-240VAC  50/60Hz  600W



Operating Temperature


Storage Humidity


Storage Temperature
