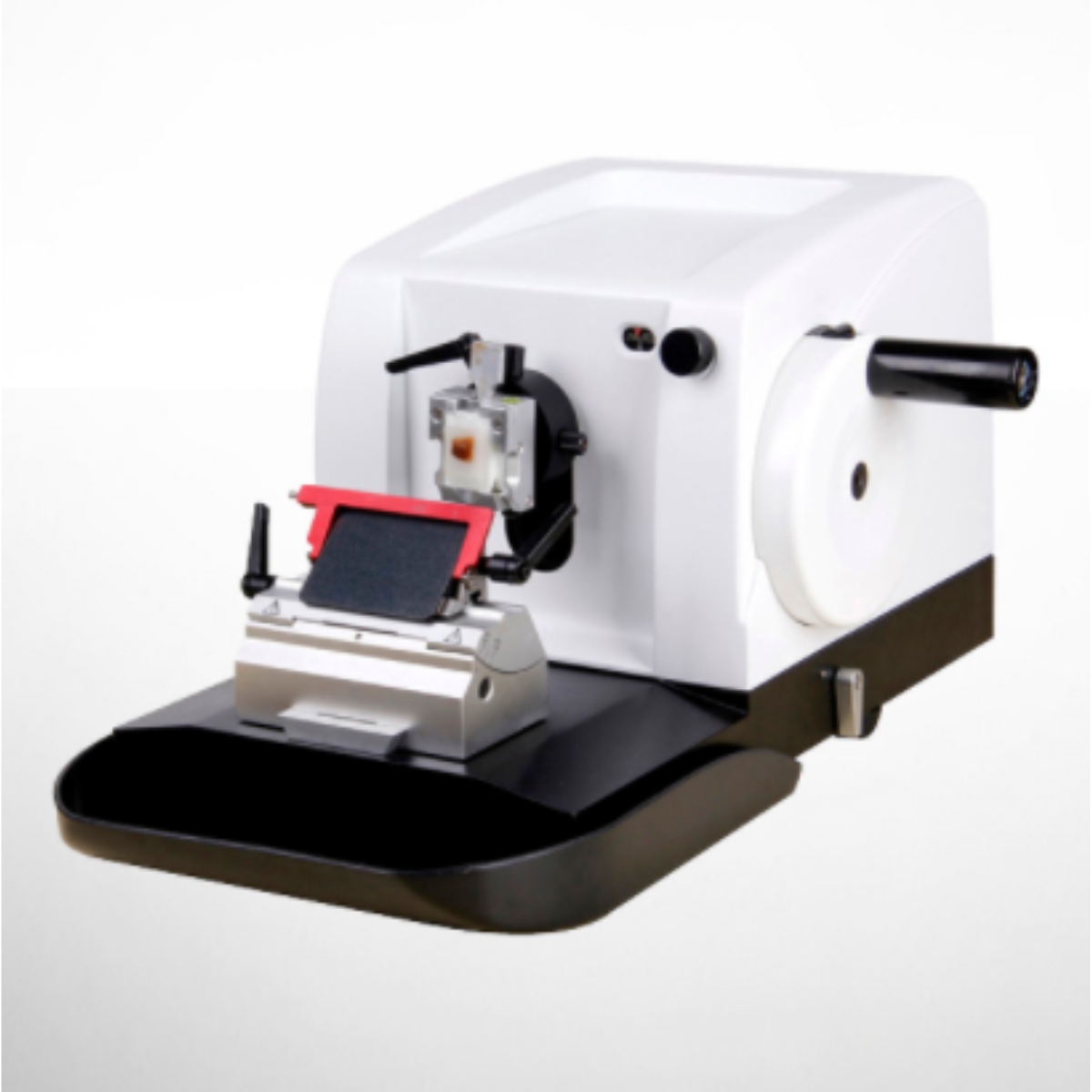

KEDEE KD-2260 Manual Rotary Microtome

The Microtome KD-2260 is designed to meet multiple requirements of histology or histopathology labs. It is also suitable for the use in research labs as well as industrial quality assurance. In being manual, the Microtome KD-2260 is flexible to use at any place in the laboratory. With its high-precision mechanics inside, the Microtome KD-2260 permits quality sections, while maintaining a high, consistent throughput. Great functionality and the appealing design are the key features of our microtome. Optimal user comfort enables a rapid, safe and smooth sectioning, even under heavy workload. The integrated sectioning waste tray is resistant to xylene, and can be detached for cleaning.
Technical Specifications:

Section Thickness Setting Range: 0–60μm
Section thickness settingoptions:

     0–2μm       increment 0.25μm
     2–10μm       increment 1μm
    10–20μm      increment 2μm
    20–60μm      increment 5μm

Trimming Thickness Setting Range: 0- 60μm
Minimum Setting of Sectioning Thickness: 1μm
Total Horizontal Specimen Feed:29mm;
Vertical Specimen Stroke:60mm
Movement Range of the Base of BladeHolder Base: 0-60mm (front to back)
Movement Range of the Blade Press plate: 0-23mm
Specimen Holder Rotation: at any angle within360 degrees
Maximum Specimen Size: 60×70mm
Specimen Orientation:XY – 8°
Precision Error: ±1％
Dimensions: 570×440×290mm (W×D×H)
Net weight: 28kg
