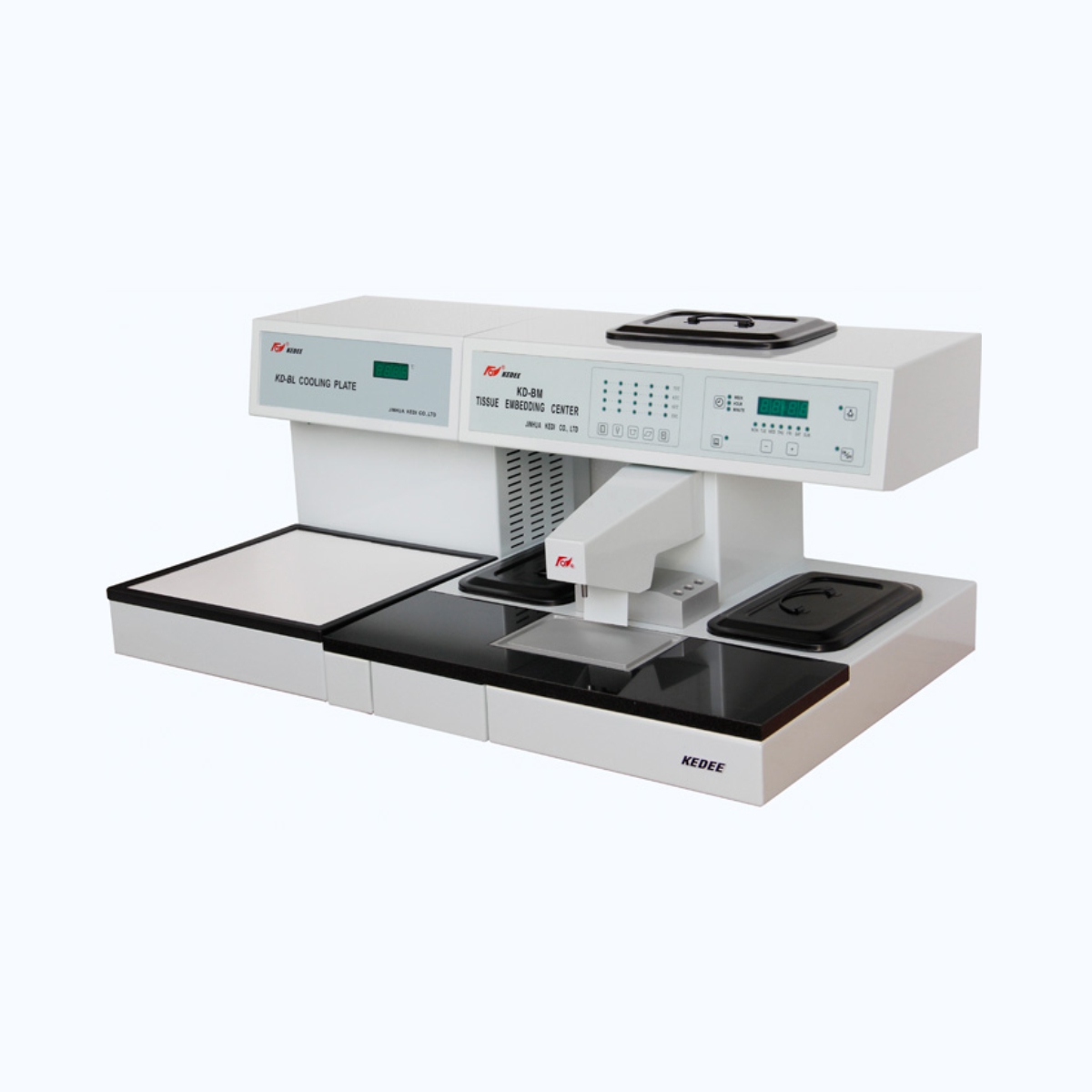

KEDEE KD-BM & BL Tissue Embedding & Cooling System

The space-saving BM&BL is a complete paraffin dispensing unit including a 3 liters paraffin container, a heated working area and a cooling spot. The ergonomically elevated heated working area is illuminated with adjustable LED light and allows comfortable processing of specimen. All functions of the unit are controlled by an intuitive control panel including programmable working hours. Two heated trays provide a pre-warming capacity of 80 cassettes and 200 embedding moulds.
Features:

 Fully programmable computer controls allow automatic system start and stop anytime

(weekly);

Temperature is controlled by microprocessors made in the USA and they are displayed

using colour-changing LEDs to enable clear visibility of working status;

Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal

Storage Compartments, and heating plate (working area), are individually controlled and

work independently without interference from each other;

Flexible heating mechanism overcomes the shortcomings of traditional technology that can

result in excessive temperature differences. System provides fast heating and precise

temperature control. In addition, the dual-protection from overheating is safe, reliable and

energy-saving;

Automatic memory and restoration functions: After startup, all preset temperature data are

automatically stored in the system;

Flexible module configuration options through a design which separates the Cryo Module

from Embedding Module;

Safe and reliable low-voltage illumination system;

Heated working plate and forceps wells make tissue embedding more convenient;

Large granite working area eases the cleanup of excessive paraffin.
Technical Specifications:

70℃ is set as the paraffin-heating temperature based on the latest internationally accepted

principles indicating that tissue embedded in paraffin might be damaged due to excessive

Histology Systems–Kedee Instruments

– 13 – / 34

shrinkage of paraffin blocks when heating temperature is above 70℃

Paraffin Chamber Capacity: 3 liters

Temperature Range of Forceps Wells: 55 – 70℃

Temperature Range of Paraffin-melting Chamber: 55 – 70℃

Temperature Range of Thermal Storage Compartments: 55 – 70℃

Temperature Range of Heated Working Areas: 55 – 70℃

Temperature Range of Paraffin dispenser: 55 – 70℃

Temperature Control Precision: ±1%

Paraffin Flow Control: Paraffin flow control via finger touch plate and optional foot pedal

Fully programmable ON/OFF control allows automatic system start and stop anytime weekly

Working Temperature of Cryo-Module: ≤ -20℃

Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz

Power: 650W (KD-BM), 300W (KD-BL)

Dimensions: 525×550×385 mm (W×D×H) (KD-BM)

590×345×385 mm (W×D×H), (KD-BL)

Net weight: 26kg (KD-BM); 26kg (KD-BL)
