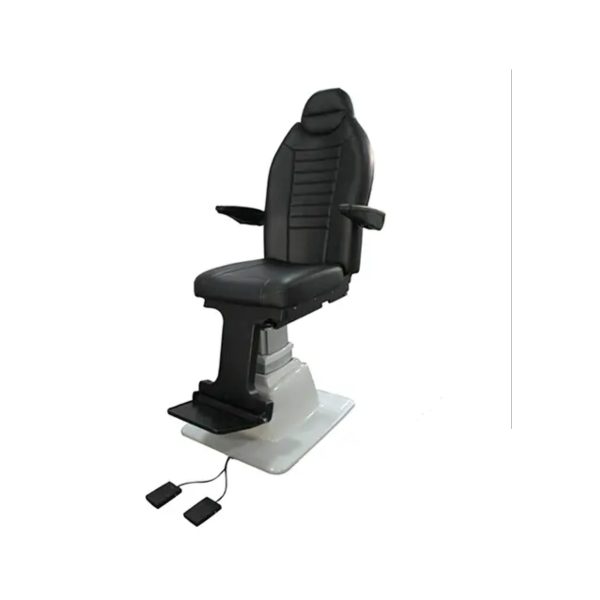

Ophthalmic Electric Chair

Ophthalmic Electric Chair is used by eye doctors to provide eye care. They are used to check the eyes for any diseases or conditions. These Ophthalmic  Chair and a Stand allows doctors to take a professional look at your eyes.
Specifications of Ophthalmic Electric Chair:

EC-300

Mechanical Parameters
1.Up and down moving range
568~708mm

2.Chair rotation angle
0°~270°

3.Backrest adjustment angle
80°~180°

4.Headrest adjustable range
within a semicircle area of 250mm radius

5.Chair max load
150kgs

Electrical Parameters
Input voltage
110-115V AC 50Hz~60Hz
240V AC 50Hz/60Hz

Output voltage
100-115V AC 50Hz/60Hz
(The optional) 240V AC 50Hz/60Hz

Engine power
28V 1.5A DC

Fuse
5A 130/250V AC

No load power
1W

Pressure test
2KV

Main wire
10A 120V/250V

Working mode
S1

Working temperature
-10ºC~+40ºC

Relative humidity
less than 90%

Installation Dimension
Figure size
1884mm*1316mm*1663mm

Weight
145kgs
