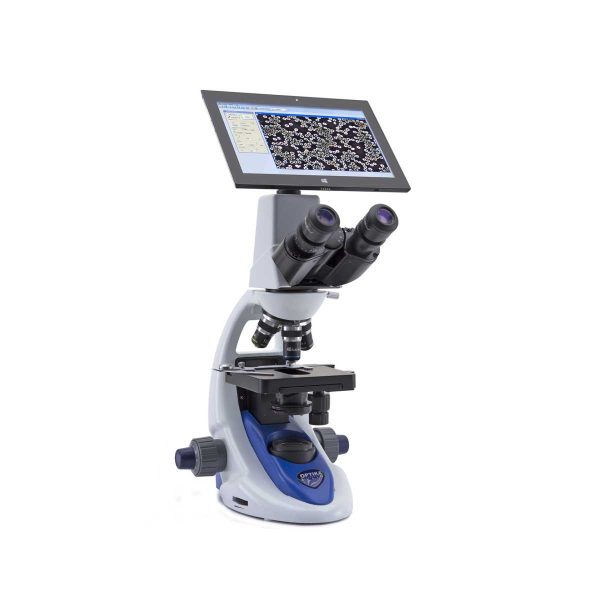

Optika B-190TB Digital Binocular Microscope

Digital binocular microscope ideal for teachers and secondary schools, with four achromatic lenses (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. The 3.1 MP CMOS camera ensures excellent colour reproduction and is connected to a Windows tablet PC with vivid color graphic display for unparalleled comfort and performance. The tablet represents a 2-in-1 solution as it can be disconnected and used as a real PC, being Windowsbased, with powerful Intel processor and large touch screen of 10.1” for fast, responsive and smooth control.
Features:

Observation mode: Brightfield.
Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera.
Eyepieces: WF 10x/18 mm, secured by screw.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives:

HC – High Contrast Achromatic 4x/0.10 with anti-fungus treatment.

HC – High Contrast Achromatic 10x/0.25 with anti-fungus treatment.

HC – High Contrast Achromatic 40x/0.65 with anti-fungus treatment.

HC – High Contrast Achromatic 100x/1.25 (Oil/Water) with anti-fungus treatment.
Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.


Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Binocular (Siedentopf)


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
48-75


Dioptric adjustement
On left tube


Fixing screw for eyepieces
Yes


Tube inner diameter (mm)
23

Eyepieces
Field number (mm)
18


Magnification
10x


Pointer
As optional


Micrometric scale
As optional


Diameter of micrometer glass (mm)
20


High eyepoint (for glass wearers)
Yes

Nosepiece
Positions
Quadruple


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system
160


Anti-fungus treatment
Yes


Parfocal distance (mm)
45


Standard magnifications
40x-400x


Type
HC


Objectives included
4x/0.10, W.D. 18 mm
10x/0.25, W.D. 7 mm
40x/0.65, W.D. 0.53 mm



100x/1.25 (Oil/Water)
W.D. 0.13 mm

Stage
Type
Double layer


Dimensions (mm)
125×116


Moving mechanism
Rack and pinion


Moving range (mm)
70×30


Material
Anti-scratch painting


Specimen clips
Yes


Slide number
1


X-Y movement
Yes


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Single
Position
Type
Abbe


Numerical aperture (N.A.)
1.25


Centrable
Pre-centered


Focusable
By rotation

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
18


Fine total travel (per single rotation) (mm)
0.4


Fine graduations
100


Fine resolution (µm)
4


Upper stop to prevent contact
Yes


Adjustable tension
Yes

Transmitted
Illumination
Type
X-LED


X-LED type
X-LED2


Light source power (W)
3


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
6

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
6 Vdc  2.5A

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


Tension adjustment tool
Yes


User Manual
Digital version (downloadable)


Calibration slide
Yes


Touch pen
Yes


USB cable (m)
0.5

Additional Information

External rechargeable battery pack (as optional).
Tablet Keyboard (as optional).

Product Weight
Height (mm)
525


Width (mm)
260


Depth (mm)
320

Product Weight
(kg)
7.5

Camera specifications
PC Camera resolution (MP)
3.1


Camera resolution (n° of pixels: W x H)
2048×1536


USB Signal output
USB 2.0


Color / Monochrome
Color


Sensor Size
1/2.5″


Sensor Technology
CMOS


Sensor Type
APTINA CMOS


Rolling Shutter
Yes


Image Format
4/3


Pixel Size (mm)
2.2×2.2


Frame rate full resolution (fps)
8@1280×1024


Frame rate other resolution (fps)
30@640×480


Sensitivity
0.53 V/lux-second


Signal/Noise Ratio (DB)
40.5


Dynamic range (DB)
66.5


ADC conversion
12 Bit


Color Depth
8 Bit


Exposure time
… – 1.5 sec


Binning
1×1


IR filter
Yes


IR filter range (nm)
680


Camera Power
PC USB


C-Mount
Yes

Camera accessories
Calibration slide
Yes

Environment
specifications
Working Temperature
-10°C up to +50°C


Storage Temperature
-20°C up to +60°C


Relative Humidity
30% to 80%


Storage Humidity
10% to 60%

Operating System
OS
Windows 10 (64Bit)

Available Software
SW
PROVIEW

Warranty
Years
2

Tablet
Operating system
Windows 10 (64Bit)


CPU
Intel® Atom™ Z8350, Quad core


CPU speed
1.44 GHz


Graphic card
Intel® HD Graphics 400


RAM
Ram 4 GB LPDDR3


Display size
LED 10.1” IPS Multi Touch Screen


Display resolution
1920×1200


Storage
Hdd 64 GB


Network
Wireless – Bluetooth 4.0


Input ports
Micro USB (OTG) – USB Type-C – Micro SD card
reader


Output ports
Microphone – Headphone – Micro HDMI


Battery Type
Lithium-ion


Battery capacity
6500 mAh


Power consumption
15W


Power supply
5V 3A


Dimensions (mm)
261X167X9


Weight (Kg)
0.53


Language
Multilanguage

Tablet accessories
OTG cable (micro USB-B to USB-A)
Yes


USB cable USB-B to USB-A (0.5m)
Yes


Touch pen
Yes


Click Here To Download Catalogue

Description

  • Observation mode: Brightfield.
  • Head: Binocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. Built-in 3.1 MP camera.
  • Eyepieces: WF 10x/18 mm, secured by screw.
  • Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
  • Objectives:
    HC – High Contrast Achromatic 4x/0.10 with anti-fungus treatment.
    HC – High Contrast Achromatic 10x/0.25 with anti-fungus treatment.
    HC – High Contrast Achromatic 40x/0.65 with anti-fungus treatment.
    HC – High Contrast Achromatic 100x/1.25 (Oil/Water) with anti-fungus treatment.
  • Specimen stage: Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
  • Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
  • Condenser: Abbe N.A. 1.25, pre-centered, adjustable height with iris diaphragm.
  • Illumination: X-LED² with white 3 W LED and light intensity control. Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply. Color temperature: 6,300 K.
