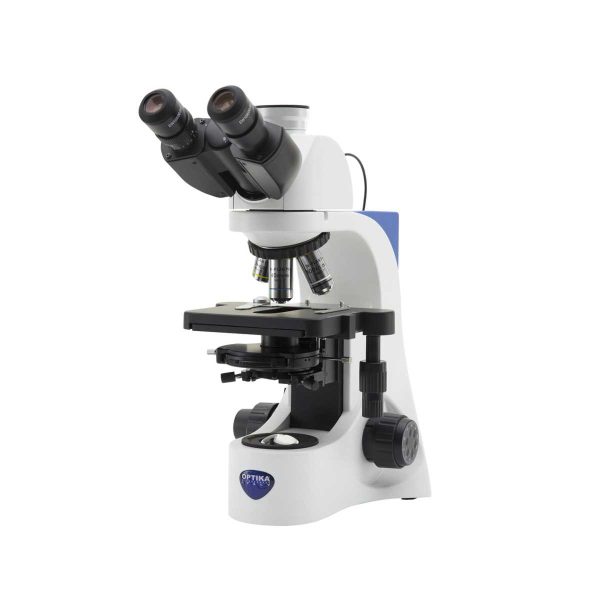

Optika B-382PH-ALC Binocular Phase Contrast Microscope

Phase contrast, darkfield and brightfield binocular microscope with W-PLAN objectives, rackless stage and combining the exclusive X-LED3  with ALC (Automatic Light Control) for great-looking, rich and highquality view.
Features:

Observation mode: Brightfield, phase contrast and darkfield (dry).
Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:

W-PLAN 4x/0.10

W-PLAN PH 10x/0.25

W-PLAN PH 40x/0.65

W-PLAN PH 100x/1.25 (Oil/Water)

All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply

Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Phase contrast (Positive type)
Yes


Darkfield
Yes


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Binocular (Siedentopf)


Inclination
30°


360° rotating
Yes


Interpupillary distance (mm)
48-75


Dioptric adjustement
On left tube


Fixing screw for eyepieces
Yes


Tube inner diameter (mm)
23

Eyepieces
Field number (mm)
20


Magnification
10x


Pointer
As optional


Micrometric scale
As optional


Diameter of micrometer glass (mm)
21


High eyepoint (for glass wearers)
Yes


Rubber cup
Yes

Nosepiece
Positions
Quintuple


Reversed
Yes


Bi-directional
Yes


Rotation on ball bearings
Yes


Objective thread
RMS

Objectives
Optical system
160


Anti-fungus treatment
Yes


Parfocal distance (mm)
45


Standard magnifications
40x-1000x


Type
IOS



W-PLAN
4x/0.10, W.D. 15.8 mm
W-PLAN PH
10x/0.25, W.D. 12.2 mm
W-PLAN PH
40x/0.65, W.D. 0.37 mm
W-PLAN PH
100x/1.25 (Oil),
W.D. 0.13 mm

Stage
Type
Double layer


Dimensions (mm)
150×139


Moving mechanism
Rackless


Moving range (mm)
75×33


Material
Anti-scratch painting


Specimen holder
Yes


Slide number
1


X-Y Vernier scale
Yes


Vernier scale accuracy (mm)
0.1

Condenser – Multiple
Position
Type
Abbe.
Brightfield – Phase contrast – Darkfield (dry)


Number of positions
5 (BF, 10x/20x, 40x, 100x, DF)


Numerical aperture (N.A.)
1.25


Removable
Yes


Diaphragms
Iris


Centrable
Yes


Focusable
By rack and pinion

Focusing System
Type
Coaxial coarse & fine


Coarse total travel (mm)
25


Fine total travel (per single rotation) (mm)
0.2


Fine graduations
100


Fine resolution (µm)
2


Upper stop to prevent contact
Yes


Adjustable tension
Yes


Flat knob for ergonomy
Yes

Transmitted
Illumination
Kohler illumination
Fixed (full as optional)


Type
X-LED


X-LED type
X-LED3


Light source power (W)
3.6


Brightness control
Manual
& Automatic (ALC)


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
6

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
6 Vdc  2.5A

Accessories Included
Dust cover
Yes


Immersion oil (10ml)
Yes


Tension adjustment tool
Yes


Allen wrench
Yes


Centering telescope
Yes


Green filter
Yes


User Manual
Digital version (downloadable)

Additional Information

External rechargeable battery pack (as optional)

Product Weight
Height (mm)
405


Width (mm)
235


Depth (mm)
370

Product Weight
(kg)
8

Description

  • Observation mode: Brightfield, phase contrast and darkfield (dry).
  • Head: Binocular, 30° inclined, 360° rotating (when ALC cable is unplugged).
  • Interpupillary distance: Adjustable between 48 and 75 mm.
  • Dioptric adjustment: On the left eyepiece tube.
  • Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
  • Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
  • Objectives:
    W-PLAN 4x/0.10
    W-PLAN PH 10x/0.25
    W-PLAN PH 40x/0.65
    W-PLAN PH 100x/1.25 (Oil/Water)
    All with anti-fungus treatment.
  • Specimen stage: Double layer rackless mechanical stage, 150×139 mm, 75×33 mm X-Y range.
  • Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
  • Condenser: Phase condenser (10x/20x, 40x, 100x) with darkfield (dry) and brightfield.
  • Illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) and brightness control. ALC system. Multi-plug 100-240Vac/6Vdc external power supply
