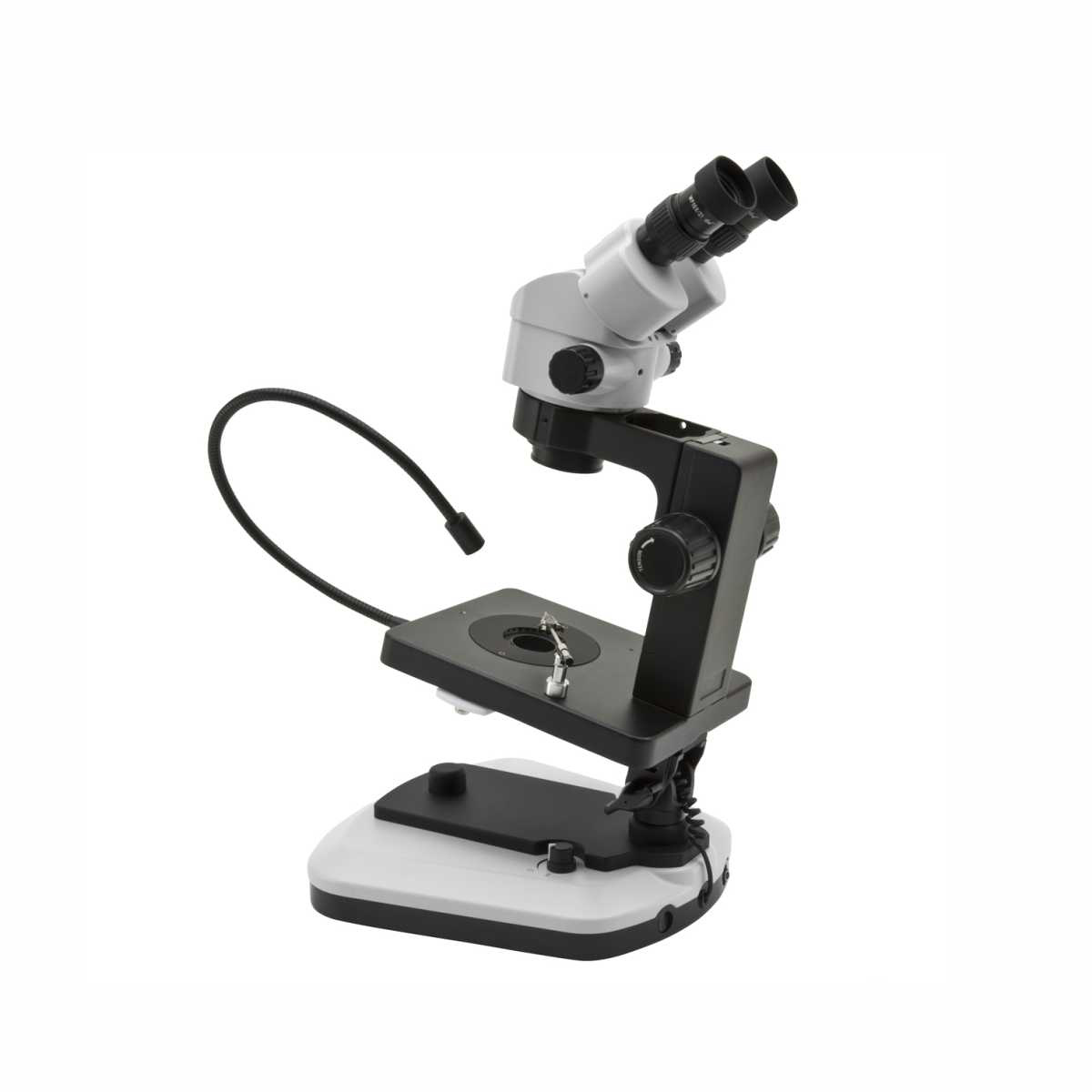

Optika Optigem-1 Binocular Stereozoom Microscope

Binocular gemological stereomicroscopes for brightfield and darkfield applications with special side-emitting LED illumination ring for true darkfield illumination. Equipped also with an incident LED flexible arm and a diffusive LED disc for transmitted illumination. The instrument can be easily tilted horizontally for immersion analysis.
Features:

Observation mode: Brightfield, darkfield.
Heads: Binocular, 45° inclined, 360° rotating.
Interpupillary distance: Adjustable between 51 and 75 mm.
Dioptric adjustment: On both eyepiece tubes.
Eyepieces: WF10x/21 mm, high eye-point.
Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
Working distance: 100 mm.
Specimen stage: Gemological stage, with clamp for holding gems.
Focusing: Rack and pinion mechanism controlled by a pair of knobs.
Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems.
Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control.
Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control.
Incident illumination: Equipped with a flexible gooseneck-arm LED illuminator. With brightness control.
Color temperature: Pure white 6,300 K


Technical Specifications:

Observation Method –
Transmitted Light
Brightfield
Yes


Darkfield
Yes


Simple polarized light
As optional

Observation Method –
Incident Light
Brightfield
Yes


Darkfield
Yes


Simple polarized light
As optional

Main Body
Type
Upright


Construction material
Aluminum die-cast


Trasportation handle
Yes

Head
Type
Binocular


Construction material
Aluminum & Plastic molds / Aluminum gears


Inclination
45°


360° rotating
Yes


Interpupillary distance (mm)
51-75


Dioptric adjustement
On both tube


Head holder internal diameter (mm)
76


Tube inner diameter (mm)
30

Eyepieces
Field number (mm)
21


Magnification
10x


Micrometric scale
As optional


Diameter of micrometer glass (mm)
23


High eyepoint (for glass wearers)
Yes


Rubber cup
Yes


Retractable protections
Yes

Objectives
Optical system
Greenough


Anti-fungus treatment
Yes


Zoom type
Achromatic


Working distance (mm)
100


Standard magnifications
7x-45x


Zoom ratio
6.43

Focusing System
Type
Coarse


Coarse total travel (mm)
114


Adjustable tension
Yes


Head holder internal diameter (mm)
76

Stand
Type
Fixed arm


Tilting mechanism
Yes, full 90° tilt angle and 360° rotating

Stage
Gemological clamp
Yes, adjustable

Transmitted
Illumination
Type
LED


Darkfield illuminator
Yes, side-emitting LEDs


Lever for dark background insertion
Yes


Selector for illumination modes
Yes, 3 modes:
– brightfield only
– darkfield only
– both brightfield and darkfield.


Light source power (W)
2


Illuminance (lux)
6,000


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
3

Incident Illumination
Type
LED


Light source power (W)
1


Illuminance (lux)
20,000


Brightness control
Manual


Lifetime (hours)
> 65,000


Temperature (K)
6,300


Max. required power (W)
3

Power Supply for
Transmitted
Illumination
Type
External


Microscope connector
Jack, 2.1 mm


Power plug type
Multi-plug (EU, UK, US)


Input voltage
100/240 Vac, 50/60 Hz


Output voltage
12 Vdc  2.5A

Accessories Included
Dust cover
Yes


User Manual
Digital version (downloadable)

Additional Information
Maximum sample height (mm):
90

Product Weight
Total Height (mm)
480


Head Height (mm)
230


Head Width (mm)
140


Head depth (mm)
150


Base height (mm)
60


Base width (mm)
210


Base depth (mm)
270

Product Weight
(kg)
10


Click Here To Download Catalogue

Description

  • Observation mode: Brightfield, darkfield.
  • Heads: Binocular, 45° inclined, 360° rotating.
  • Interpupillary distance: Adjustable between 51 and 75 mm.
  • Dioptric adjustment: On both eyepiece tubes.
  • Eyepieces: WF10x/21 mm, high eye-point.
  • Objective: Parfocal achromatic zoom 0.7x…4.5x (zoom factor 6.43:1).
  • Working distance: 100 mm.
  • Specimen stage: Gemological stage, with clamp for holding gems.
  • Focusing: Rack and pinion mechanism controlled by a pair of knobs.
  • Stand: Fixed arm stand with tilting system (with position lock control). It can be totally overturned and rotated allowing in this way to obtain a 2-in-one instrument: an instrument for standard observations and one for observation of water-immersed gems.
  • Darkfield illumination: Equipped with a state-of-the-art illuminator for darkfield observation. It consist of an innovative side-emmiting LEDs ring with an emission angle of 38°. With brightness control.
  • Transmitted light llumination: Equipped with a LED illuminator, located under the stage. With brightness control.
  • Incident illumination: Equipped with a flexible gooseneck-arm LED illuminator. With brightness control.
  • Color temperature: Pure white 6,300 K
