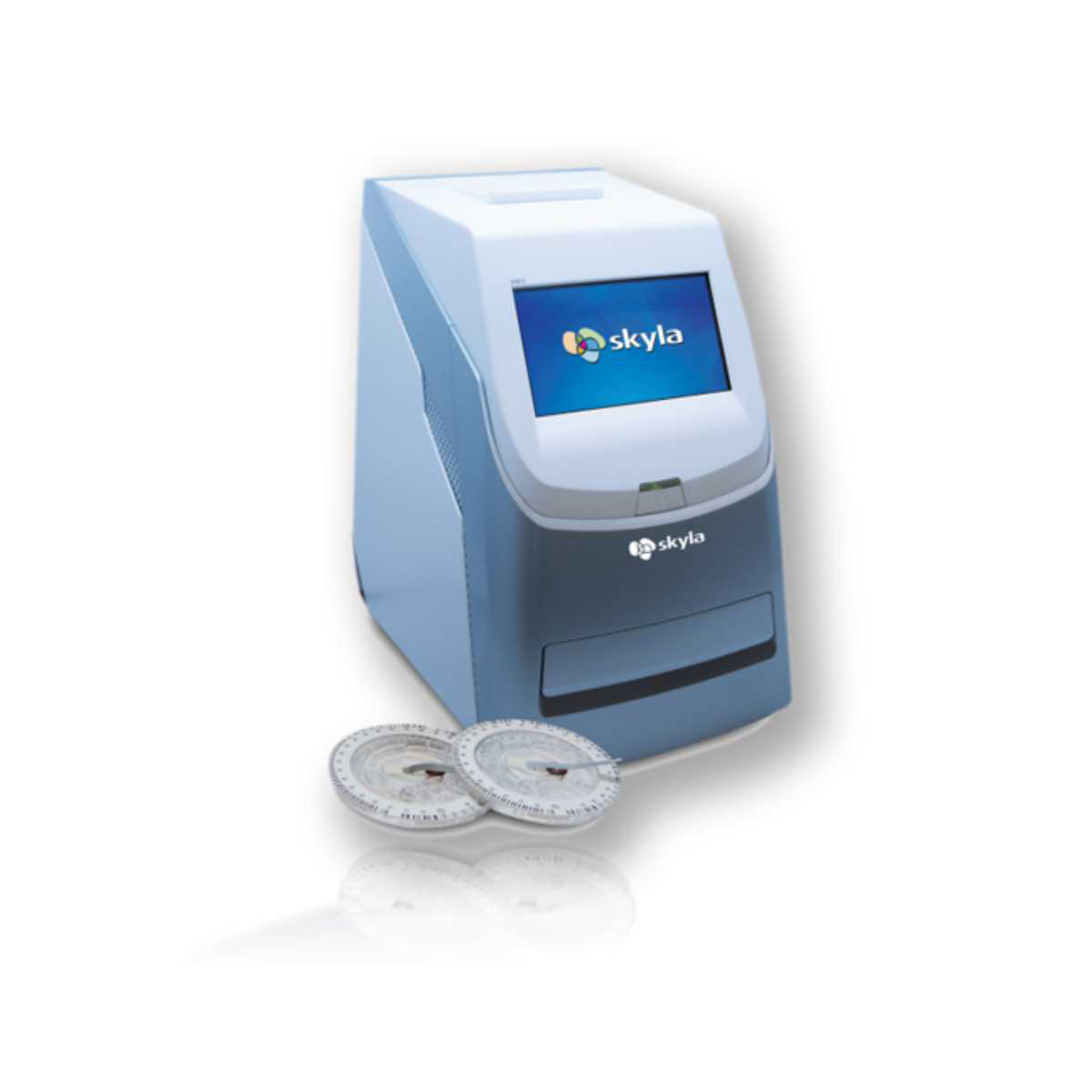

Skyla HB1 POC Clinical Chemistry Auto Analyzer

Skyla HB1 Clinical Chemistry Analyzer utilizes precision photometric measurement technology, combined with the single-use disposable reagent discs. The reagent disc contains a set of dry assay reagents that are used in the quantitative testing of various biomarkers in the blood sample. HB1 provides clinical testing laboratories of medical facilities and clinics with an in-vitro clinical chemistry diagnostic tool that is compact, portable, and reports rapid results. Only needs 200µl of blood (whole blood, serum or plasma is accepted.) and no sample preparation is required. All steps are designed automatically from checking the validity of reagent discs and cartridges to printing the results. Over 30 test parameters are allowed with fast analysis and results in 15 minutes. Internal Quality Control (IQC) with self-calibration of optical system, chemicals stability and interference alerts functions monitor and ensure the results with high accuracy.
Available Test Panels

Renal Function – BUN, CREA eGFR
Liver Function – ALB, TP, ALP, ALT, AST, TBIL, DBIL, GGT, LDH A/G#, GLOB#, IBIL
Lipid Metabolism – TG, TC, HDL LDL#, VLDL
Pancreatitis Markers – AMY, LIPA
Carbohydrate Metabolism and Others – GLU , CPK, UA, LAC
Inflammatory Markers – CRP
Electrolyte – Na, K, Cl, Ca, PHOS, Mg, tCO2

SPECIFICATION
Principle

Colormetric System : LEDs 340nm~940nm wavelength

Sample & Panel

Test Profiles : Panels
Measurement Time – Panel: up to 15 tests/ 15 min
Sample Type & Volume : 200 μl whole blood (PCV<60%), plasma, serum  Device User Interface : 5 inch color LCD touch screen Internal Memory : Store up to 50,000 analysis results Printer : Built in thermal printer or external USB printer (PCL 3GUI) USB Socket : USB type A (Host) for external USB Printer, USB flash drive (FAT) or external barcode scanner Data transmission to PC : RS232 serial port or RJ45 (LAN) Dimensions : 233 (W) X 285 (D) X 300 (H) mm Weight : 5.5 kg Operating Condition Temperature / Humidity : 10 to 32˚C / 5 to 90 %   Click Here To Download Catalogue
