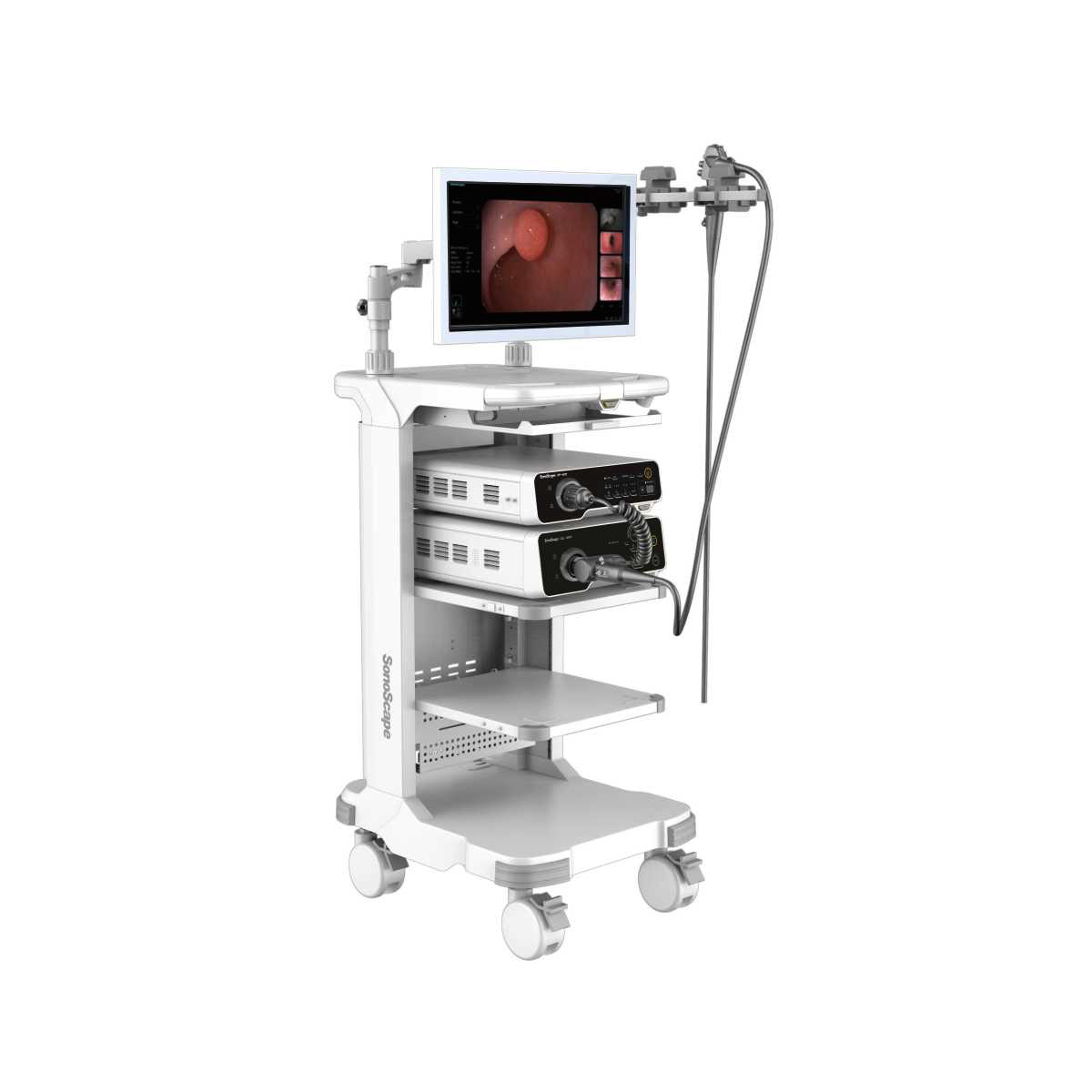

Sonoscape HD-500 Gastrointestinal Video Endoscopy Stack

HD-500 VIDEO PROCESSOR

HD video outputs: DVI, SDI, VGA
Standard video outputs: S-Video, CVBS
HD video recording: Built-in workstation
Zoom/PBP: Yes/Yes
Dimension (mm): 455x370x124

HDL-500X LIGHT SOURCE

Main lamp: 300W xenon
VIST chromoendoscopy: Versatile intelligent Staining Technology
Transparency function: 7 seconds maximum brightness flicker
Lifetime indicator: Yes
Hot plugging: Endoscope switch without powering off
Dimension (mm): 460x370x154

HDT-500 TROLLEY SYSTEM

Master switch: Centralized power control
Monitor: Versatile LCD monitor
Extended storage space: 4-layer rack
Scope holder: Ergonomic design scope holder
Dimension (mm): 640x712x1332
Optional: Isolation transformer

Dual monitor stand

500 SERIES ENDOSCOPES

Parameter
Gastroscopes
Colonoscopes

EG-500
EG-500L
EC-500
EC-500T
EC-500L
EC-500L/T

Depth of view (mm)
3-100
3-100

Field of view (°)
140
140

Distal end diameter (mm)
9.3
9.8
12
12
12.9
12.9

Bending section diameter (mm)
9.3
9.8
12.5
12.5
12.9
12.9

Instrument channel diameter (mm)
2.8
3.2
3.8
4.2

Angulations (°)
Up/Down: 210/90 Left/right: 100/100
Up/Down: 180/180
Left/Right: 160/160

Working length (mm)
1050
1350
1700
1350
1700

Total length (nm)
1350
1700
1950
1700
1950
