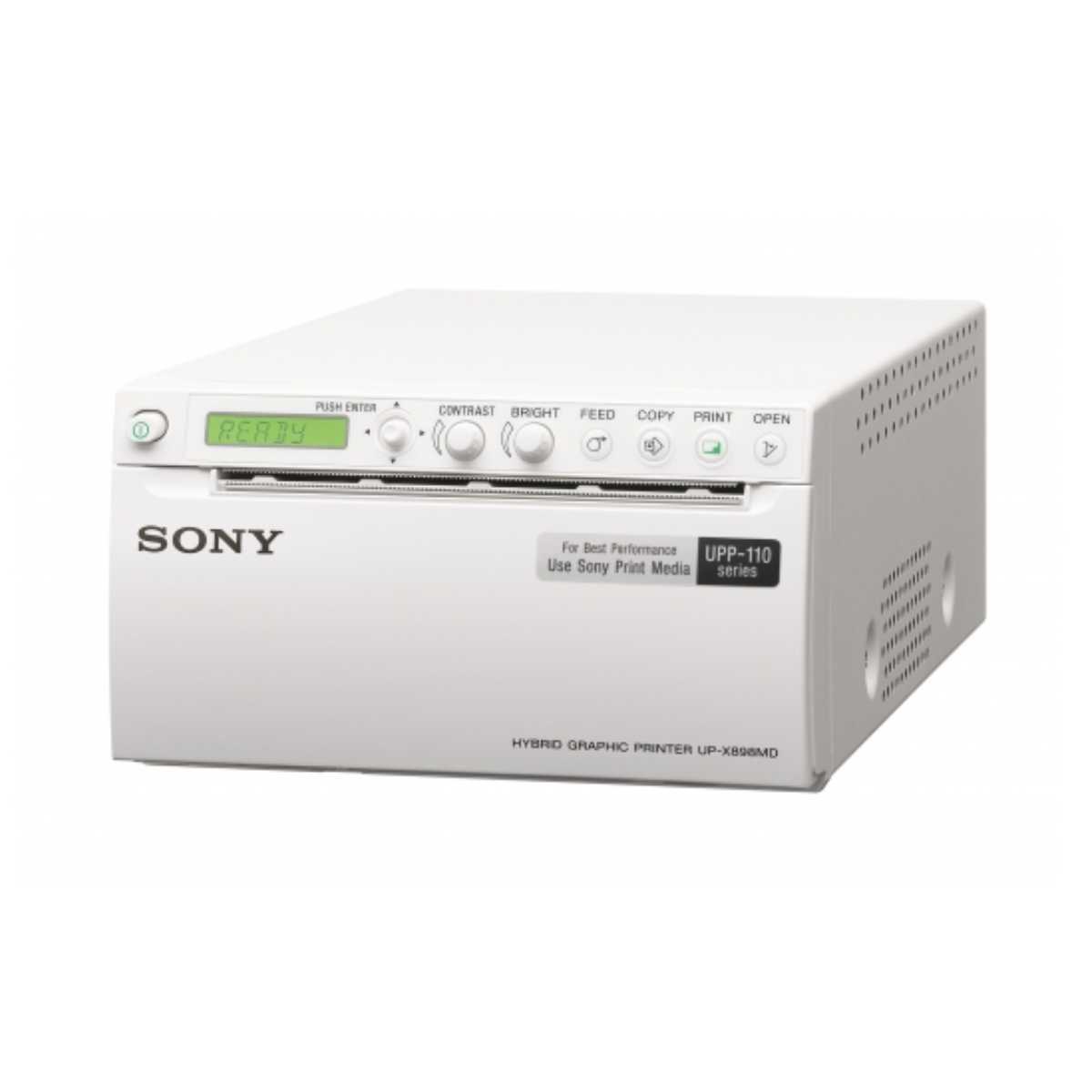

Sony Thermal Printer

850,000.00

The UP-X898MD is a compact A6 medical grade black and white digital printer that can accept analogue video as well as PC-friendly digital USB signal inputs. It’s designed to be integrated into a wide range of compatible medical imaging environments such as digital ultrasound systems, mobile C-arms or cardiac catheterisation laboratory. The high quality thermal print engine can produce hard copy prints of still images captured by these systems for use in patient records and referrals. For even greater convenience, printed still images can also be stored to a connected USB flash drive.
Features:

High print quality
A6 prints in less than two seconds
Hybrid operation with analogue and digital inputs
Compact, space-saving design
Hard copy reference of print settings
Wide PC compatibility
Wireless Printing Capability
Dual cutter configuration
Store pictures on a USB flash drive
Enhanced operability
Uses widely available print media
Quick guide print
Compliance with Medical Safety Standards


Technical Specifications:

Printing Method:
Direct thermal printing

Resolution:
325 dp

Gradations:
8 bits (256 levels) processing

Picture Elements:
Digital: 4096 x 1280 dots

Video NTSC: 720 x 504 dots

Video PAL: 720 x 604 dots

Picture Area:
Digital: 320 x 100 mm/12 5/8 x 3 7/8 inch (Max)

STD Video NTSC: 94 x 73 mm, Video PAL: 94 x 71 mm (WIDE1) when “SIDE:OFF” is selected

SIDE Video-NTSC: 124 x 96 mm, Video-PAL: 127 x 96 mm (WIDE1) when “SIDE:ON” is selected

Paper Size:
Paper width of 110 mm (4 3/8 inches)

Printing Time:
High-speed mode:

Approx. 1.9 seconds/image (at standard setting)

Normal speed mode:

Approx. 3.3 seconds/image (at standard setting)

Picture Memory:
Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 frame memories (850 k x 8 bits per frame)

Interface:
USB terminal (type A) for USB flash drive (X1)

Hi-Speed USB (USB 2.0) (x1)

VIDEO INPUT: BNC type (x1)

NTSC or PAL composite video signals

1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated)

VIDEO OUTPUT: BNC type (x1) Loop-through

REMOTE: Stereo mini jack (x1)

Printer Driver Software:
Microsoft Windows 7 32/64 bit, 8 32/64 bit, 10 32/64 bit

Power Requirements:
AC 100 V to 240 V, 50/60 Hz

Input Current:
1.3 A to 0.6 A

Operating Temperature:
5°C to 40°C (41°F to 104°F)

Operating Humidity:
20% to 80% (no condensation allowed)

Storage and Transport Temperature:
-20°C to +60°C (-4°F to +140°F)

Storage and Transport Humidity:
20% to 80% (no condensation allowed)

Dimensions (W x H x D):
154 x 88 x 240 mm (6 1/6 x 3 1/2 x 9 1/2 inches)

Mass:
2.5 kg (5 lb 8 oz)

Supplied Accessories:
Thermal head cleaning sheet (1), CD-ROM (1), Before Using this Printer (1), Service Contact List (1), USB Flash Drive Ex. Cable, Print media (UPP-110HG)

Description

  • High print quality
  • A6 prints in less than two seconds
  • Hybrid operation with analogue and digital inputs
  • Compact, space-saving design
  • Hard copy reference of print settings
  • Wide PC compatibility
  • Wireless Printing Capability
  • Dual cutter configuration
  • Store pictures on a USB flash drive
  • Enhanced operability
  • Uses widely available print media
  • Quick guide print
  • Compliance with Medical Safety Standards
