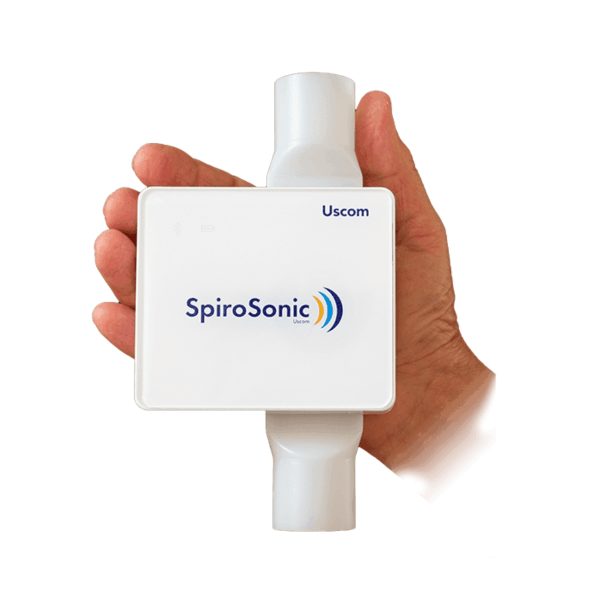

Spirosonic Mobile Portable Spirometer

Specifications of Spirosonic Mobile Portable Spirometer  –

Volume & Flow Accuracy- ± 3% or 50 mL/s whichever is greater
Maximum Volume- ± 20 L
Flow Range- ± 14 L/s
Sample Rate- 100Hz Data / 100MHz Digital
Flow Tube Dimensions- Ø30 x 165 mm
Device Dimensions- 35 x 80 x 90 mm
Device Weight- 160 grams
Communication- Bluetooth and USB
Power-Internal 3.7 V Li-Ion battery
Battery- Rechargeable via 5V mini USB charger
Measurement principle- Ultrasonic multiple-path
Bluetooth connectivity to Android mobile/tablet devices
Connection to PC via USB (SpiroReporter Software required)
Highly cost efficient design, robust, durable mechanics
No moving parts, durable factory calibration

Miscellaneous:

1.Automatic internal calibration, (external validation with calibration pump available as an option)

2.Easy and efficient integration to HIS (Hospital Information Systems)

3.Software upgrade option

4.Plug & Play USB PC connection detection

5.Easy upgrade, standard interfaces

6.Long-term monitoring

7.Pharmaceutical testing subsystem

8.The inner surface of the flow tube is continuous, it can be disinfected with cold disinfecting liquid
