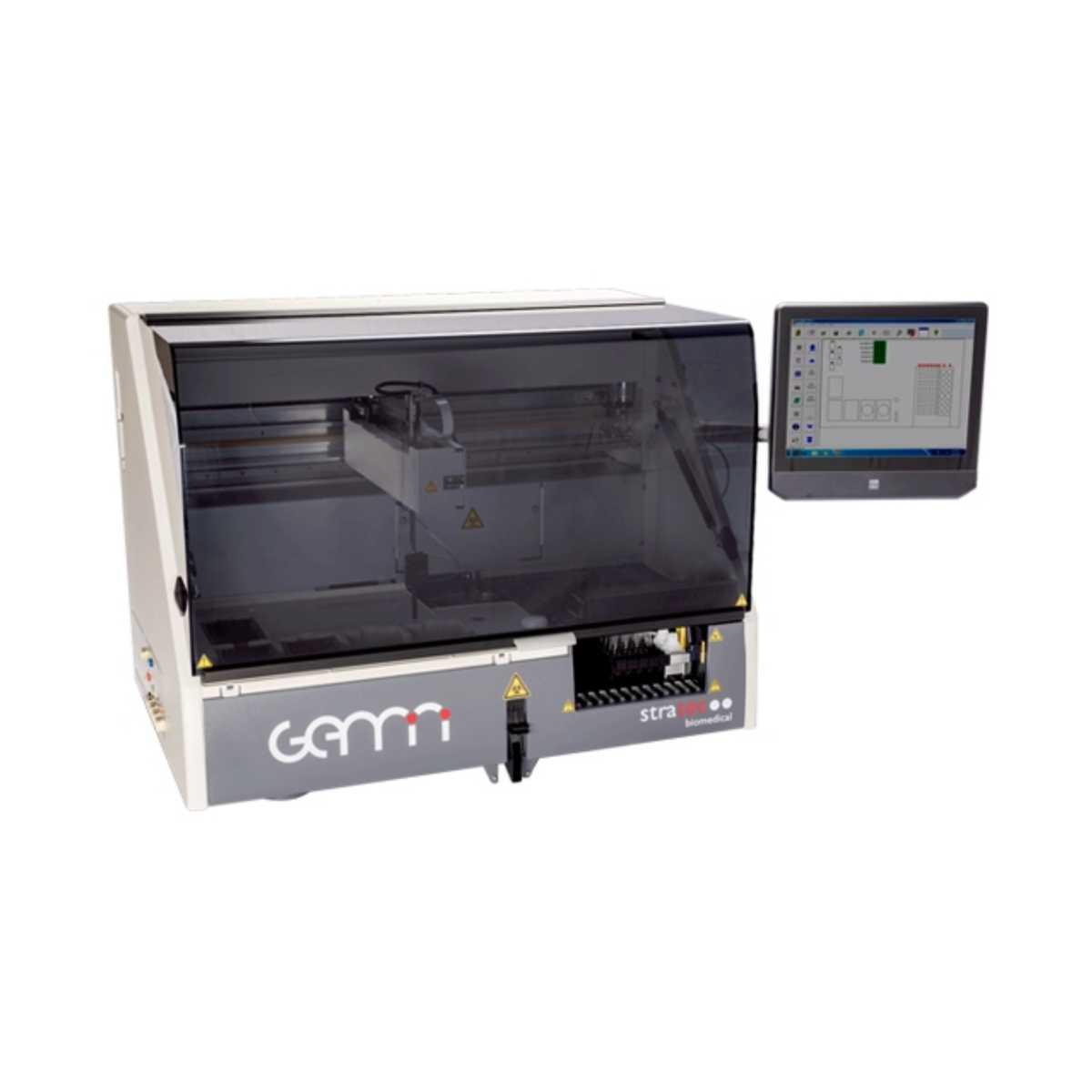

Stratec Gemini Elisa Machine with Reader

GEMINI offers cost-savings, safety and a high degree of flexibility enabling a smooth laboratory workflow, thus making it a powerful system for all.
FEATURES

Ease of use in application and maintenance
Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
Intuitive and highly flexible open software with complete data reduction and LIS interfaces
Integrated PC and touchscreen eliminates the need for an external workstation
Smart time-management allows processing up to 3 microplates simultaneously

SPECIFIATIONS
Reader

Photometric range: 0 to 3.0 OD
Spectral range: 400 nm to 700 nm (up to 8 filters)
Read time: < 15 sec single, < 30 sec dual Precision: 1% CV at 1.0 OD Accuracy: ±0.005 OD or 2.5 % (whichever is greater) Linearity: 0 to 2.000 OD ±1 % Pipettor Min / max. volumes: 10 µl to 300 µl with 300 µl tip, 301 µl to 1000 µl with 1100 µl tip Precision (single dispense): < 3 % CV at 20 µl, < 3 % CV at 100 µl Precision (multi dispense): < 10 % CV at 16 x 20 µl, < 3 % CV at 8 x 100 µl Features: Pipetting pressure monitoring, capacitive liquid level detection, tip detection, mixing, multiple dilution steps, archiving Capacity Sample and reagent capacity: Up to 192 samples (Flexible: e.g. 144 samples + 8 reagents + 16 controls) Incubator Temperature range: Up to 45 °C Temperature uniformity: ±1.5 °C (with in-process temperature uniformity monitoring) Shaking: 20 Hz Washer Precision: 10% CV at 300 µl Residual volume: <2.5 µl in U-bottom (mean), <4 µl in flat bottom (mean) Wash buffer capacity: 3 wash buffers Modes: Sweep mode, soak, top and bottom wash, variable pump speed Dimensions Width x Depth x Height: 125 cm x 65 cm (without waste bag) x 75 cm with closed cover (49” x 26” x 30”)   Click Here To Download Catalogue

Description

  • Ease of use in application and maintenance
  • Designed with sample and reagent ID-barcode reading, in-tip dilution reducing consumable costs
  • Intuitive and highly flexible open software with complete data reduction and LIS interfaces
  • Integrated PC and touchscreen eliminates the need for an external workstation
  • Smart time-management allows processing up to 3 microplates simultaneously
