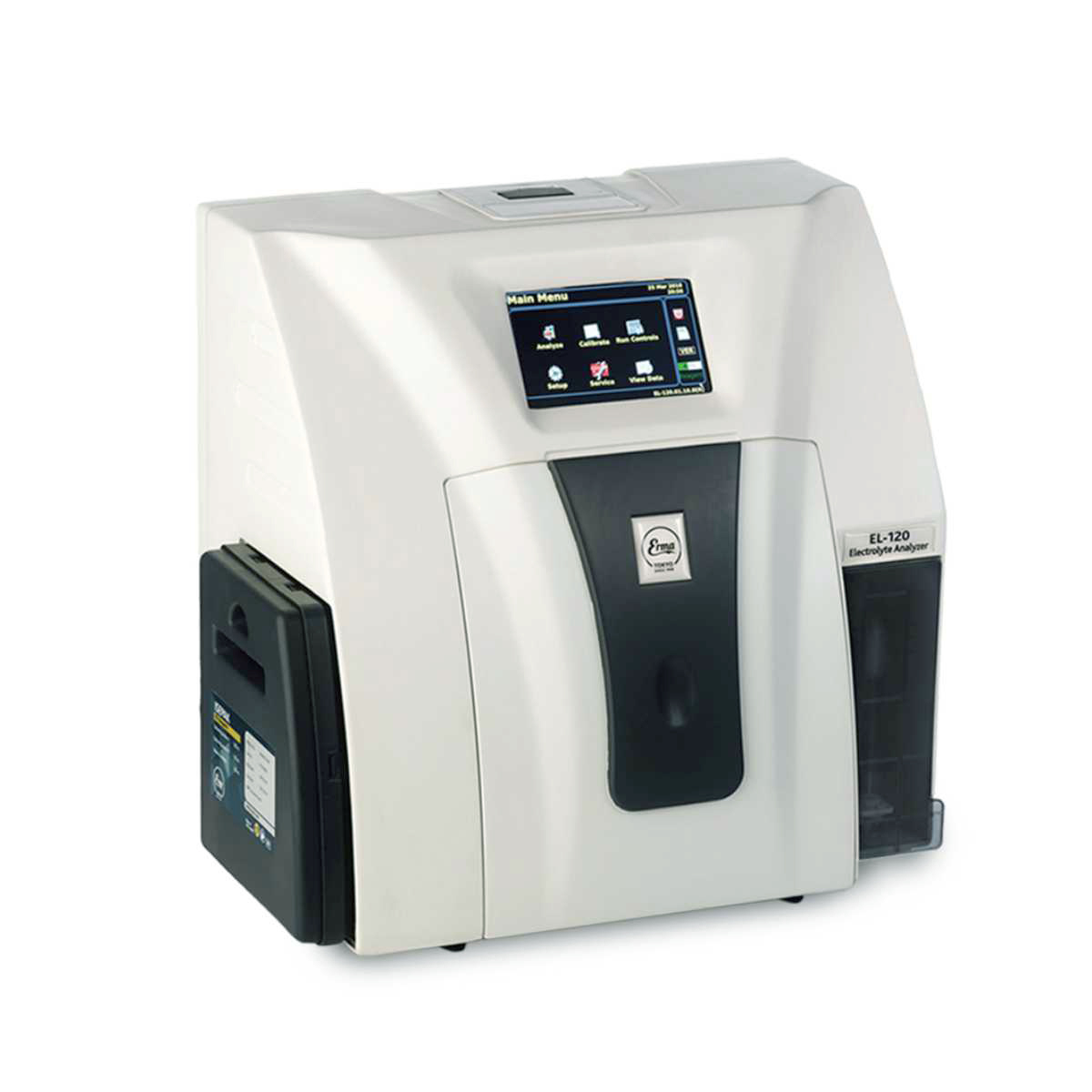

AGD Erma EL-120 ELectrolyte Analyzer

Electrolyte Analyzer ERMA EL-120 is ideal for medium to high volume Laboratories and Hospitals . It offers reliable, automated samples handling and work flow offences . It also allows measurement of specific ions, accurately and precisely . This supports fast diagnosis of critically ill patients and reduces the risks of patient discomfort associated with repeated sampling Precise & Accurate Results Economical to use Large Touchscreen Display with Graphical User Interface.
Features:

Parameters: Na+,K+,Cl-, iCa++ / Li
It works on ISE principle
Sample Type: Whole blood, Serum, Plasma, Urine
Low reagent consumption
Sample requirement is only 90ul
60 samples per hour
Automatic two point calibration after 4hrs and one point calibration with each sample analysis
Air bubble detection
Track reagents consumption and provides alerts
For low reagent volume
Precision testing facility to get CV and SD
Trilevel Quality Control with LJ plots of last 30days
Low aspiration volume
Fast sample processing
Accurate and Precise results

Technical Specifications:

Parameters
Na+, K+, Cl– /Ca++

Principle
Ion Selective Electrode (ISE)

Sample Type
Analyses whole blood, serum, plasma and urine

Sample Volume
≤100 µL

Analysis Time
≤60 seconds

Throughout
≤60 samples per hour

Data Link
Serial (RS232)

External Interface
USB (Keyboard, Mouse)

Operating Condition
10° C to 35° C, Relative Humidity up to 85%

Storage Condition
Temp: 10° C to 40° C

Relative Humidity
up to 85% non- condensing

Power Supply
100 to 240 VAC ±10%, 50Hz

Dimensions
395 x 260 x 375 mm

Weight
7.5 kg
