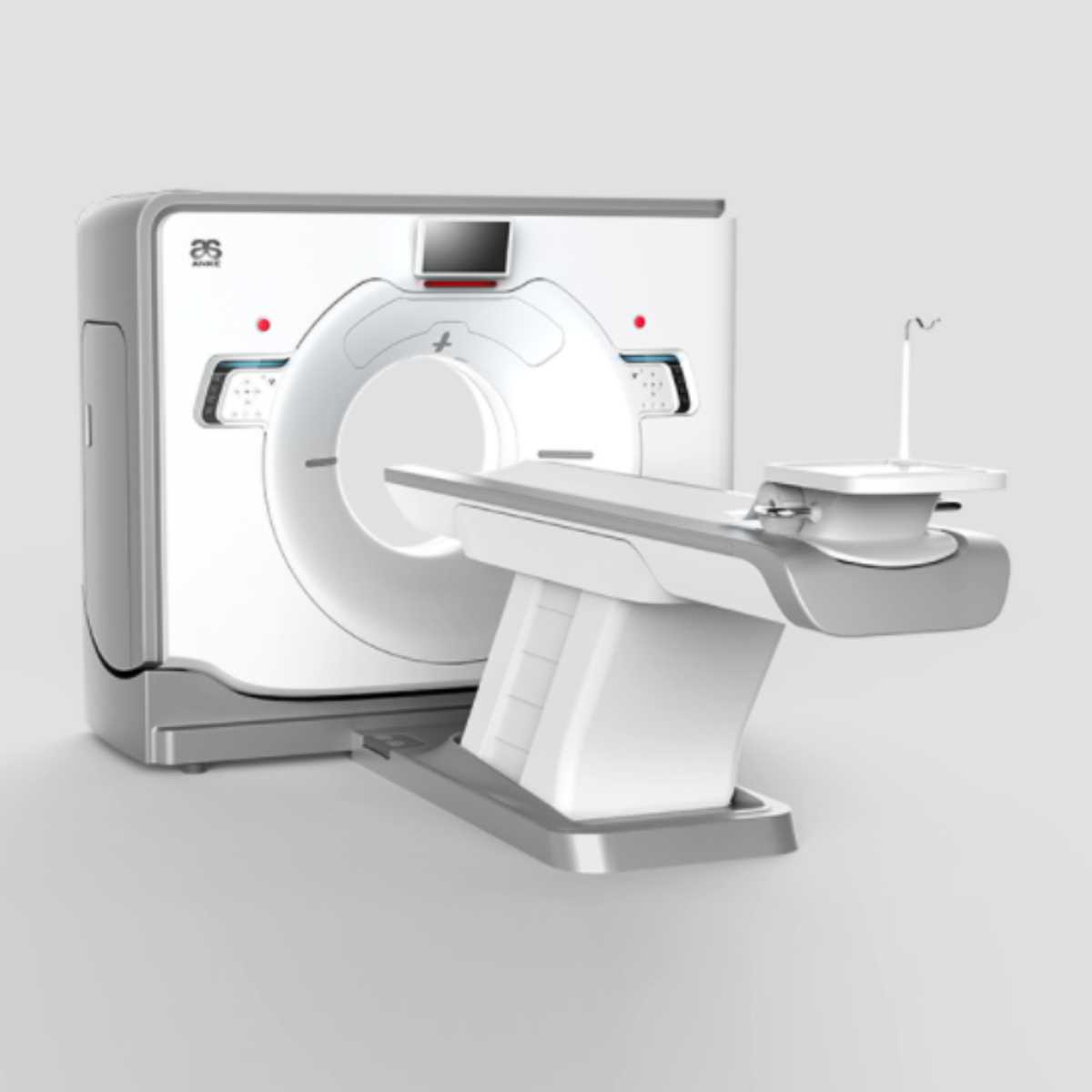

Anke Anatom 16 Slice CT Scan

Categories: , , , SKU: ZN2024301 Tags: ,

ANATOM16 HD, is a tool of precision medicine in diagnosis imaging. Via the breakthrough designs in precise hardware, software and imaging technologies, ANATOM 16 HD can provide precise diagnosis information and early detection for small lesions.
Features:

Seamlessly upgrade to meet your future needs: Anke takes full consideration of the increasing clinical requirements of your business in today’s rapidly changing medical environment.
Precise hardware, Precise technology, Precise imaging: OptiWave detector, High precision gantry control, Dual-mode gantry tilt, Admir3D iterative technology, Dual-energy head imaging, 1024 x1024 matrix imaging technology, High-definition imaging of targeted organs, Low dose platform, 3D enhanced VR
Precision Technology Platform: ANATOM precision technology platform is equipped with advanced imaging technologies, and adopts OptiWave detector, Ahead dual-energy imaging, Admir3D iterative reconstruction technology and AccuTilt dual-mode tilt gantry technology to provide powerful support for accurate diagnosis
Admir3D iterative reconstruction technology: Admir applies mathematical and physics models to accurately construct and describe the signal’s quantum characteristics. Iterative operations are performed in the three domains of raw data, projection and image, to greatly reduce the image noise and achieve optimal image quality with low dose
Ahead-Head dual-energy head imaging technology: Ahead creatively uses 140kV and 80kV dual energy switching scan mode for brain imaging. By careful analyzing the high and low energy characteristics, images can show more valuable information about the brain tissues
AccuTilt dual-mode gantry tilt technology: The system provides digital and mechanical tilt to accommodate different user habits and clinical needs. Real-time collision preventing system is available for the patients’ safety
AccuOrgan-Targeted organ imaging: To achieve high precision imaging of each part of human body at low dose and low energy consumption
AccuDose-Comprehensive low dose imaging: Pediatric Scan Protocol, Individual Dose Monitoring, AccuShape Filter, Efficient Detector, Adose Dose Modulation, Ahead – Head Dual-energy Imaging, Iterative Reconstruction, Amast, Contrast Agent Tracking Technology
AccuScan-Enjoy ease: Convenient and efficient operation process greatly improve work efficiency to achieve high volume of patients
Clinical Applications: Fast, precise and low-dose imaging technologies provide a full range of clinical solutions to meet the current and future clinical diagnostic needs
Service Innovation creating maximum value for customers: Service Support within 24 Hours, Local Service Partners, On-line Service Support, After-sales Maintenance Stations
AccuSaving Green & Energy-saving: AccuSaving is an innovative energy saving technology. The system will enter the “dormant”, which is a low carbon mode, after a certain idle time or per user’s request. To bring the system back to working status is as easy as pushing a button. The system will also remind the user to perform necessary warm-up and calibration procedures, which are fully automated processes. AccuSaving technology can reduce operation and standby power consumption and save the electricity cost by 30% by adopting different operation modes in working and off hours


Technical Specifications:

No.
Technical feature

1
Gantry

1.01
Gantry type
Low voltage slip-ring with
AccuSlip-ring technology

1.02
Gantry driven type
Strap-driven

1.03
Patient opening
70cm

1.04
Gantry tilt mode
Dual-mode gantry tilt

1.05
Mechanical tilt capability
±30°

1.06
Digital tilt capability
±50°

1.07
Gantry remote-Control
Provided

1.08
Detector type
OptiWave rare-earth ceramic detector

1.09
Numbers of detector rows
32

1.10
Width of Z-axle detector
20mm

1.11
Detector columns of channels per row
912

1.12
Numbers of detector columns
29184

1.13
Data-transfer type
RF,optical fiber communication

1.14
3D laser orientation
Provided

1.15
External X-ray enable
Interface for Foot-Pedal Provided

1.16
Automatic exposure control(mA Modulation)
Provided

1.17
Auto-voice manager
Breath Graphical Display
Hold Message (Record/Playback)
Breath Message(Record/Playback)

1.18
ANKE energy conservation management
Provided

1.19
Acquisition mode
16 × 0.625mm, 16 × 1.25mm

2
Scan parameter

2.01
Shortest 360 degree rotation time
0.5s

2.02
Allowed rotation times
0.5s,0.8s,1.0s,1.5s,2.0s

2.03
Slice numbers per rotation
16

2.04
Minimum slice thickness of scan
0.625mm

2.05
Minimum slice thickness of reconstruction
0.625mm

2.06
Maximum slice thickness of scan
10mm

2.07
Nominal reconstruction slice thickness
0.625mm,1.25mm,2.5mm,5.0mm,
7.5mm,10mm

2.08
Speed of image reconstruction(512×512)
65 frames/s

2.09
Scan FOV
52cm

2.10
Image reconstruction matrix
512×512,1024×1024

2.11
Image display matrix
512×512,1024×1024

2.12
Maximum continuous scan duration
120s

2.13
Maximum continuous scan length
180cm

2.14
Direction of TOPO
Front-back,Left-right

2.15
Max. length of TOPO
180cm

2.16
Range of pitch
0.5~1.5

2.17
Scan mode
Scout scan
Axial scan
Helical scan
Cine scan

3
HVPS and Tube

3.01
Maximum continuous output of HV generator
50kW

3.02
Tube kV selections
80kV,100 kV,120 kV,140 kV

3.03
Tube mA range
10~420mA

3.04
Tube anode heat capacity
5.0MHU

3.05
Heat dissipation rate
815kHU/min

3.06
Type of cooling
Oil cooling + Air cooling

3.07
Tube focus
Large:1.0 mm×1.0mm
Small:0.5mm×1.0mm

3.08
Dynamic flying focal spot technology
Provided

4
Patient table

4.01
Maximum horizontal-movable range
1850mm

4.02
Table horizontal-scannable range
1800mm

4.03
Table horizontal-position repeatability
±0.25mm

4.04
Maximum vertical-movable range
500mm

4.05
Maximum speed of vertical movement
20mm/s

4.06
Maximum speed of horizontal movement
150mm/s

4.07
Maximum patient weight
205kg

4.08
Foot pedal of patient table control
Provided

5
Image Quality

5.01
High contrast resolution
21lp/cm@0%MTF

5.02
Low contrast resolution
2.0mm@0.30%

5.03
Isotropic imaging resolution
0.625mm

5.04
Range of CT numbers
-32767~32768

5.05
Image noise
≤0.25@28mGy

6
Computer subsystem

6.01
CPU
3.5GHz

6.02
Memory
16GB×4

6.03
Storage of hard-disk
1T×2

6.04
Monitor
24’’ LCD Monitor

6.05
Resolution of monitor
1920×1200

6.06
Image-data external storage type
CD/DVD/USB

6.07
Time of image reconstruction(512×512)
15.4ms/frame

6.08
DICOM 3.0 interface
Provided

6.09
Printer DICOM 3.0 interface
Provided

6.10
Auto filming
Provided

6.11
Worklist function
Provided

7
Advanced application

7.01
Multi-Planar Reconstruction(MPR)
Provided

7.02
Curve Multi-Planar Reconstruction(CPR)
Provided

7.03
Surface Shaded Display(SSD)
Provided

7.04
Volume Rendering(VR)
Provided

7.05
Maximum Intensity Projection(MIP)
Provided

7.06
Minimum Intensity Projection(MinIP)
Provided

7.07
Virtual Endoscopy(VE)
Provided

7.08
CT angiography(CTA)
Provided

7.09
Tissue segmentation
Provided

7.10
One click bone remove
Provided

7.11
One click patient table remove
Provided

7.12
Bolus-tracking Technology
Provided

7.13
Spiral auto start
Provided

7.14
Cine display
Provided

7.15
AbastTM bone artifact suppression technology
Provided

7.16
AmastTM metal artifact suppression technology
Provided

7.17
Admir3D fulll-domain iterative reconstruction
Provided

7.18
Low-dose pediatric scan technology
Provided

7.19
Low-dose lung scan technology
Provided

7.20
AccuHead grey-white matter enhanced
technology
Provided

7.21
AccuLung high resolution scan technology
Provided

7.22
AccuOtica inner-ear high resolution scan
technology
Provided

7.23
AccuBody high resolution scan technology
Provided

7.24
AccuBone high resolution scan technology
Provided


Click Here To Download Catalogue

Description

  • Seamlessly upgrade to meet your future needs: Anke takes full consideration of the increasing clinical requirements of your business in today’s rapidly changing medical environment.
  • Precise hardware, Precise technology, Precise imaging: OptiWave detector, High precision gantry control, Dual-mode gantry tilt, Admir3D iterative technology, Dual-energy head imaging, 1024 x1024 matrix imaging technology, High-definition imaging of targeted organs, Low dose platform, 3D enhanced VR
  • Precision Technology Platform: ANATOM precision technology platform is equipped with advanced imaging technologies, and adopts OptiWave detector, Ahead dual-energy imaging, Admir3D iterative reconstruction technology and AccuTilt dual-mode tilt gantry technology to provide powerful support for accurate diagnosis
  • Admir3D iterative reconstruction technology: Admir applies mathematical and physics models to accurately construct and describe the signal’s quantum characteristics. Iterative operations are performed in the three domains of raw data, projection and image, to greatly reduce the image noise and achieve optimal image quality with low dose
  • Ahead-Head dual-energy head imaging technology: Ahead creatively uses 140kV and 80kV dual energy switching scan mode for brain imaging. By careful analyzing the high and low energy characteristics, images can show more valuable information about the brain tissues
  • AccuTilt dual-mode gantry tilt technology: The system provides digital and mechanical tilt to accommodate different user habits and clinical needs. Real-time collision preventing system is available for the patients’ safety
  • AccuOrgan-Targeted organ imaging: To achieve high precision imaging of each part of human body at low dose and low energy consumption
  • AccuDose-Comprehensive low dose imaging: Pediatric Scan Protocol, Individual Dose Monitoring, AccuShape Filter, Efficient Detector, Adose Dose Modulation, Ahead – Head Dual-energy Imaging, Iterative Reconstruction, Amast, Contrast Agent Tracking Technology
  • AccuScan-Enjoy ease: Convenient and efficient operation process greatly improve work efficiency to achieve high volume of patients
  • Clinical Applications: Fast, precise and low-dose imaging technologies provide a full range of clinical solutions to meet the current and future clinical diagnostic needs
  • Service Innovation creating maximum value for customers: Service Support within 24 Hours, Local Service Partners, On-line Service Support, After-sales Maintenance Stations
  • AccuSaving Green & Energy-saving: AccuSaving is an innovative energy saving technology. The system will enter the “dormant”, which is a low carbon mode, after a certain idle time or per user’s request. To bring the system back to working status is as easy as pushing a button. The system will also remind the user to perform necessary warm-up and calibration procedures, which are fully automated processes. AccuSaving technology can reduce operation and standby power consumption and save the electricity cost by 30% by adopting different operation modes in working and off hours
