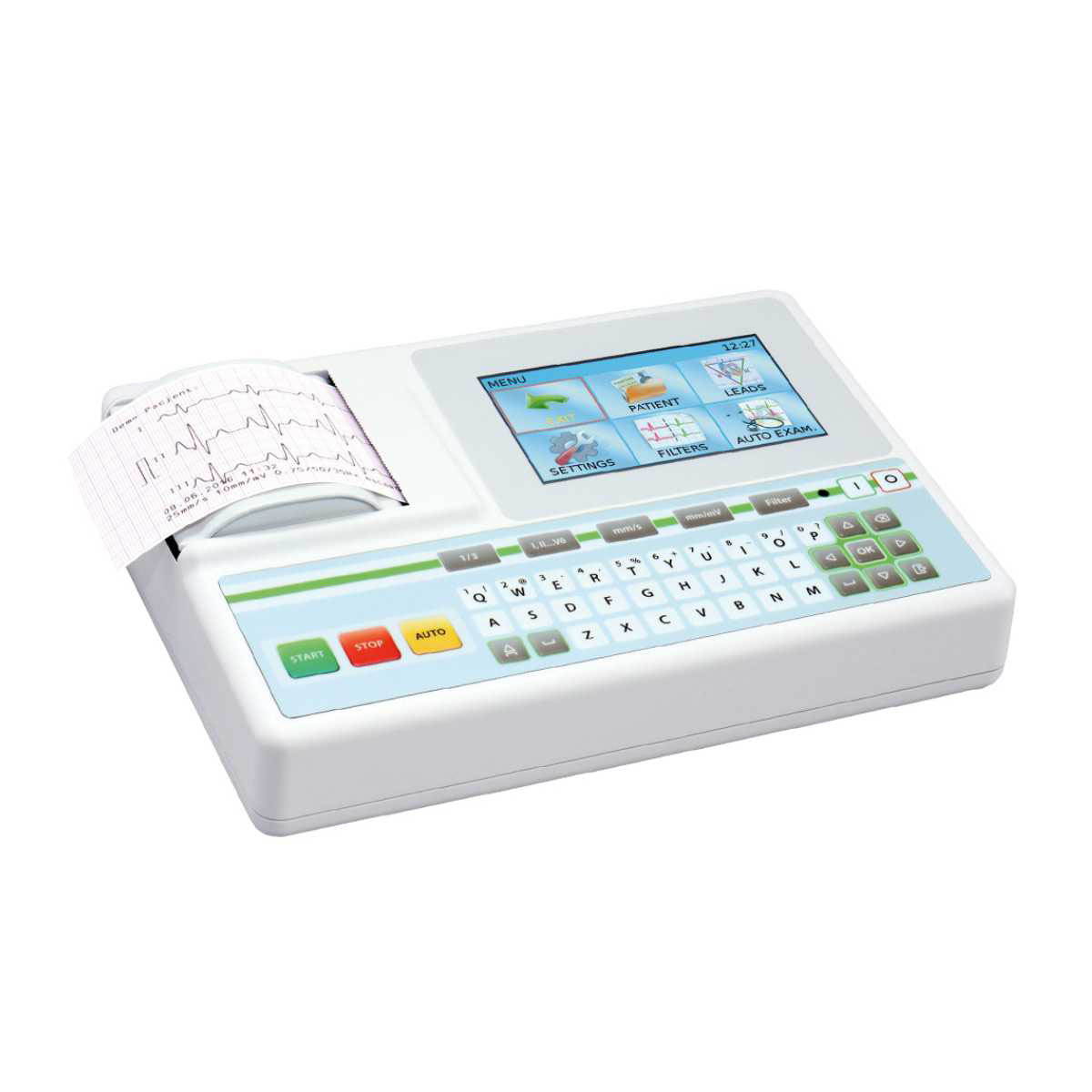

ASPEL AsCARD Green ECG Machine
Description
  • dimensions: 220x153x55 mm (LxWxH)
  • weight: < 0,6 kg
  • recording of standard 12 ECG leads
  • saving the ECG signal simultaneously from all the 12 leads during the automatic recording, together with the date and time of the examination, filter settings, examination recording time and, optionally, patient’s data, in the internal memory
  • printout of the automatic ECG recording from internal memory, in groups of three leads
  • printout of the analysis, interpretation of automatic ECG examination
  • display of 1, 3, 6 or 12 lead ECG recordings
  • ECG printout in 1-, 3-, 6- or 12-channel modes
  • attaching the name of the patient to the ECG printout
  • LCD TFT (4,3″, 480×282) touch screen
  • membrane alphanumeric keyboard with functional keys
  • graphical menu displayed on the screen for easy operation using keyboard
  • automatic analysis and interpretation in compliance with EN 60601-2-25 (CSE database) – interpretation dependable on age & sex of a patient
  • memory of the last automatic examinations, with a limit from 5 to 1000
  • up to 130 automatic examinations in battery mode
  • continuous heart rate (HR) measurement and display
  • automatic detection of QRS complex
  • adapted to direct operation on an open heart
  • power line interference filter: 50 Hz, 60 Hz
  • muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz
  • contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz
  • detection of electrode detachment, independent for each channel
  • selectable channel to detect heart rate
  • thickness of the printing ECG waveforms line to choose from: normal or bold
  • presentation of the curves in the standard layout or Cabrera layout
  • multilingual menu
  • external USB communication port to connect a PC and the CardioTEKA software, for real-time transmission of ECG signal
  • acoustic signalling of detected beats
  • protection against defibrillation pulse
  • detection and presentation of stimulating pulses on printout
  • automatic examination with the printout of patient data and clinic data
  • battery power saving functions
