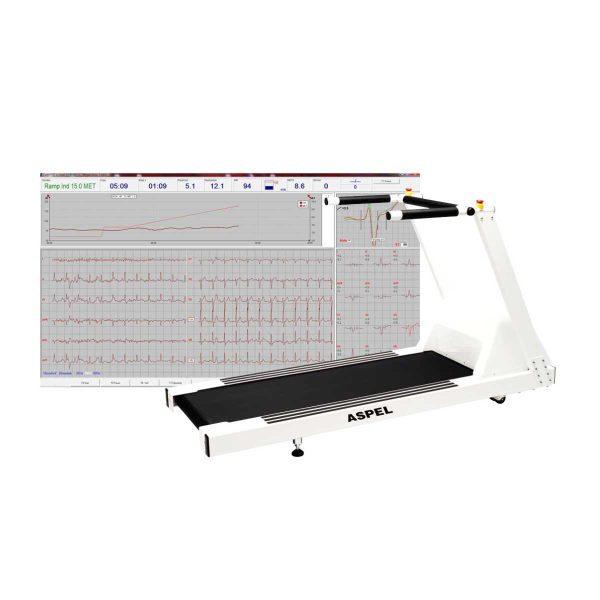

ASPEL Stress ECG with Treadmill and Software
It is a system with professional tool dedicated to exercise and resting ECG examination. Treadmill has 12 lead ECG modules. With ECG Analyzing Software.
Technical Specification:
Simultaneous registration and observation of ECG signal from all 12 leads on PC screen,
Automatic measurement of HR, ST level and slope,
Printing and archiving examination report which contains: patient’s data, the full disclosure ECG of the whole recording, selected strips, average P-QRS-T complexes, table summary, load value, HR, ST level and slope,
RAMP protocol
PMHR control
Digital filtration of mains disturbances
Digital filtration of muscle origin disturbances
Resting examination: 12, 6 or 3-channel in manual or automatic mode
Automatic regulation of isoelectric line position in the middle of registration channel
Automatic elimination of isoelectric line migration
CardioTEST Software:
excellent quality of ECG waveforms thanks to the use of digital filters eliminating the swimming of the isoelectric line and disruption of muscle origin,
uninterrupted recording and presentation of 12-lead ECG signal, presentation of averaged P-QRS-T units with 12 leads along with the results of ST level and slope measurements,
automatic HR measurement, ST level and ST segment slope,
automatic control of cycloergometer and treadmill load,
archiving and printing of the research report,
automatic determination of measuring points with the possibility of manual correction,
automatic arrhythmia analysis,
presentation of parameters regarding: test phase, current load, stage time and total effort time,
monitored parameters: rhythm rate, MET, double product, blood pressure, level, ST segment slope and load,
real-time ECG printout,
preview of trends of all measured parameters during the test,
alarm system for monitored parameters and arrhythmia,
an option to automatically measure blood pressure,
archiving and printing a report enabling a reliable assessment of the study (such an report contains ECG, average P-QRS-T assemblies and a table with measurement results),
standard test protocols and the ability to define your own protocols also in RAMP mode,
preview the report on the screen before printing the report,
function of reanalysis of the performed test,
presentation of 3D trends illustrating ST segment changes.
