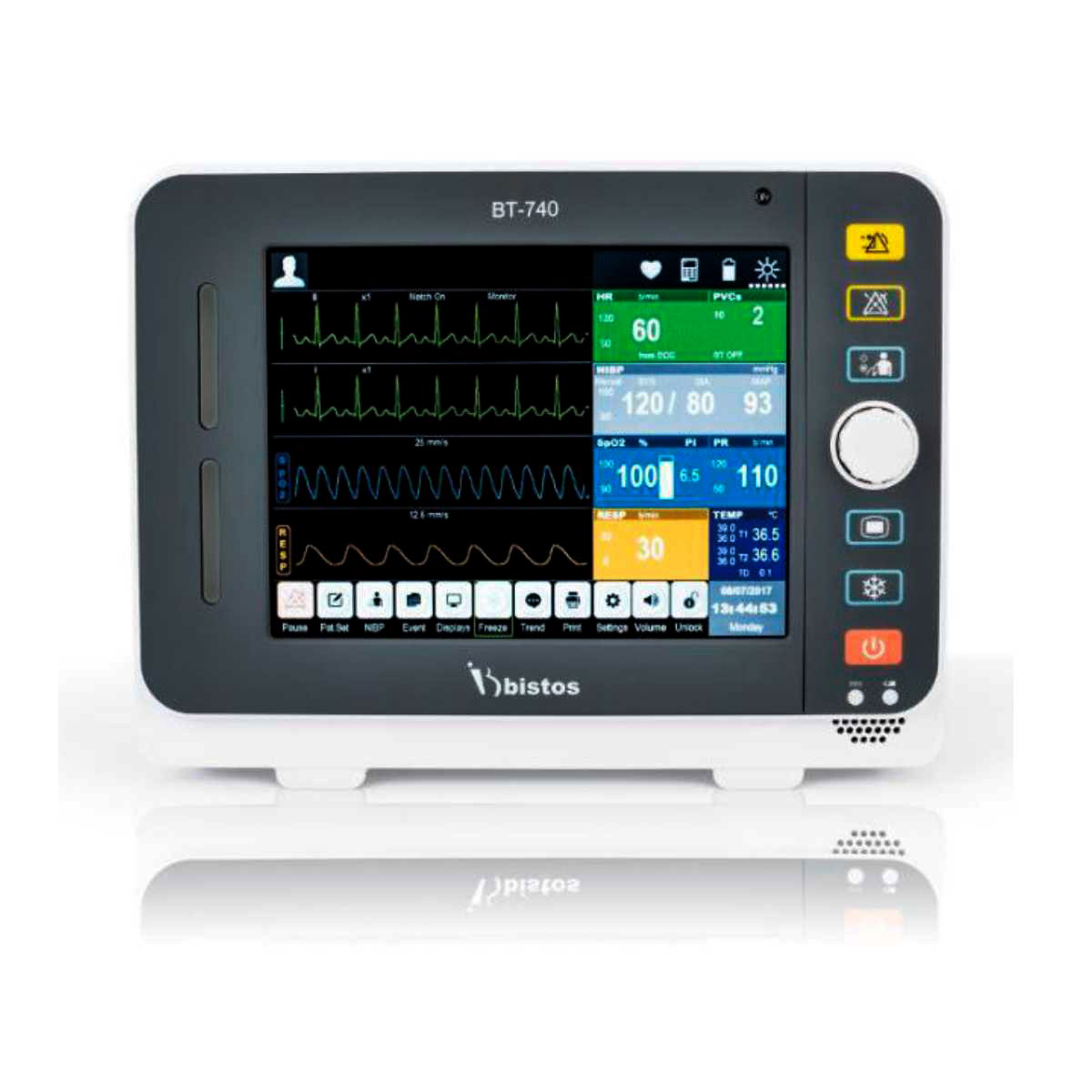

Bistos BT- 740 Patient Monitor

Bistos BT – 740 Patient Monitor: Bistos Patient Vital Signs Monitor, ECG, Resp., SpO2, NIBP, Temp., BT-740. The Bistos BT-740 is a multi-parameter patient monitor with an 8.4″ TFT Color screen. The standard paramaters are ECG, respiratory, SpO2, NIBP and temperature. Additional options are EtCO2, IBP, Multi-gas, CO and Masimo SpO2. The BT-740 has a fanless design for quiet operation.
Features:

8.4″ TFT Color Screen – (Optional Touch Screen Upgrade)
Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
Ultra-low power consumption
Quiet operation
High accuracy SpO2 reading
Data transfer or firmware upgrade via USB
2 Years Manufacturer’s Warranty


Technical Specifications:

Model
BT-740

Display
8.4″ Color TFT Screen

ECG
Lead type
3/5 Lead

Gain Selection
x0.25, x0.5, x1, x2, x4, auto

Sweep speed (mm/s)
12.5, 25, 50

Bandwith:(Diagnostic Mode)
0.05-130Hz

Monitoring Mode
0.5-40Hz

Surgery Mode
1-25Hz

Strong Mode
5-20Hz

Heart Rate Range (bpm)
Adult:15-300

Pediatric/neonate: 15-350

Respiration
Method
Trance-thoracic Impedance

Measurement Range
0-120rpm

Sweep Speed (mm/s)
6.25, 12.5, 25

SpO2
Measurement Range
0-100%

Accuracy (70-100%)
Adult/Pediatric
+/-2%

Neonate
+/-3%

Accuracy (0-69%)
Unspecified

Perfusion Index
0.05-20%

Pulse Rate
Range (bpm)
25-250bpm

NIBP**
Method
Automatic (Oscillometric)

Operation Mode
Manual/Auto/STAT

Parameter
Systolic, Diastolic, Mean

Systolic Range (mmHg)
Adult
40-270

Pediatric
40-200

Neonate
40-130

Diastolic Range (mmHg)
Adult
10-210

Pediatric
10-160

Neonate
10-90

Mean Range (mmHg)
Adult
20-230

Pediatric
20-175

Neonate
20-100

Temperature
Range
0-50°C

Parameter
T1, T2 and TD

IBP”
Channel
2 Channel, 4 Channel

Range (mmHg)
-50-400

Printer*
Type
Thermal dot array

Print Speed (mm/s)
12.5, 25, 50

Paper Size (mm)
50

CO2*
Sidestream
Masimo ISA / Bistos

Mainstream
Masimo IRMA / Bistos

Multi-gas O2*
Masimo ISA

SpO2 Masimo*
Masimo SpO2

CO*
Method
Thermodilution

Range
0.2-20 L/min

Battery
Type (Capacity)
Li-ion (440mAh)

Run Time
6 hour

Charging Time
4 hour

Interface
RJ45, USB, Nursing Call

Warranty
2 Years


Click Here To Download Catalogue

Description

  • 8.4″ TFT Color Screen – (Optional Touch Screen Upgrade)
  • Standard parameters are ECG, Resp., SpO2, NIBP, Temp.
  • Ultra-low power consumption
  • Quiet operation
  • High accuracy SpO2 reading
  • Data transfer or firmware upgrade via USB
  • 2 Years Manufacturer’s Warranty
