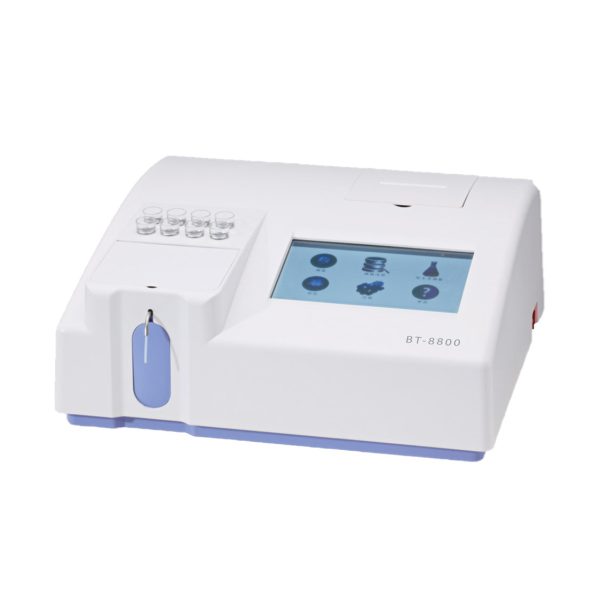

BT 8800 Semi Chemistry Analyzer

Features and Benefits:

High-Quality & Close Optical System
Easy Touch Screen Operation
Convenient Maintenance Design
Large Memory Capacity
With 8 Inner Incubation Positions
Support Barcode Reader

Specification:

Analysis Method:
Kinetic, end point, dual wavelength, ABS

Light source:
Halogen lamp, 6V/10W

Wavelength (nm):
340, 450, 492, 510, 546, 578, 630, 700

Absorbance range:
0 ~ 4,0 ABS

Wavelength accuracy:
±2nm

Spectrum band:
±10nm

Flowcell:
10mm quartz cell, 32µL volüme

Temperature control:
Room temperature, 37°C (±0,1°C variable)

Sampling volume:
100µL ~ 9999µL adjustable, recommended: ≥500µL

Cross contamination:
≤1,0%

Stability:
≤0,005Abs/h

Memory:
Up to 300 items and 30.000 test results

Display:
Large LCD touch screen display

Printer:
Built-in thermal printer

Interface:
Parallel port (For external printer), RJ-45, 3USB, SDID, PS-2

Ambient:
Room temperature: 10°C ~ 32°C; Humidity: ≤40% ~ 85%

Power:
AC (110-220)V, 50Hz

Dimension:
362,5 x 341 x 165mm (length * width * height)

Features

High-quality grating & close optical system

Easy touch screen operation with 7 inch colour screen

Convenient maintenance design

Large memory capacity

With 8 inner incubation positions

Support barcode reader and keyboard
