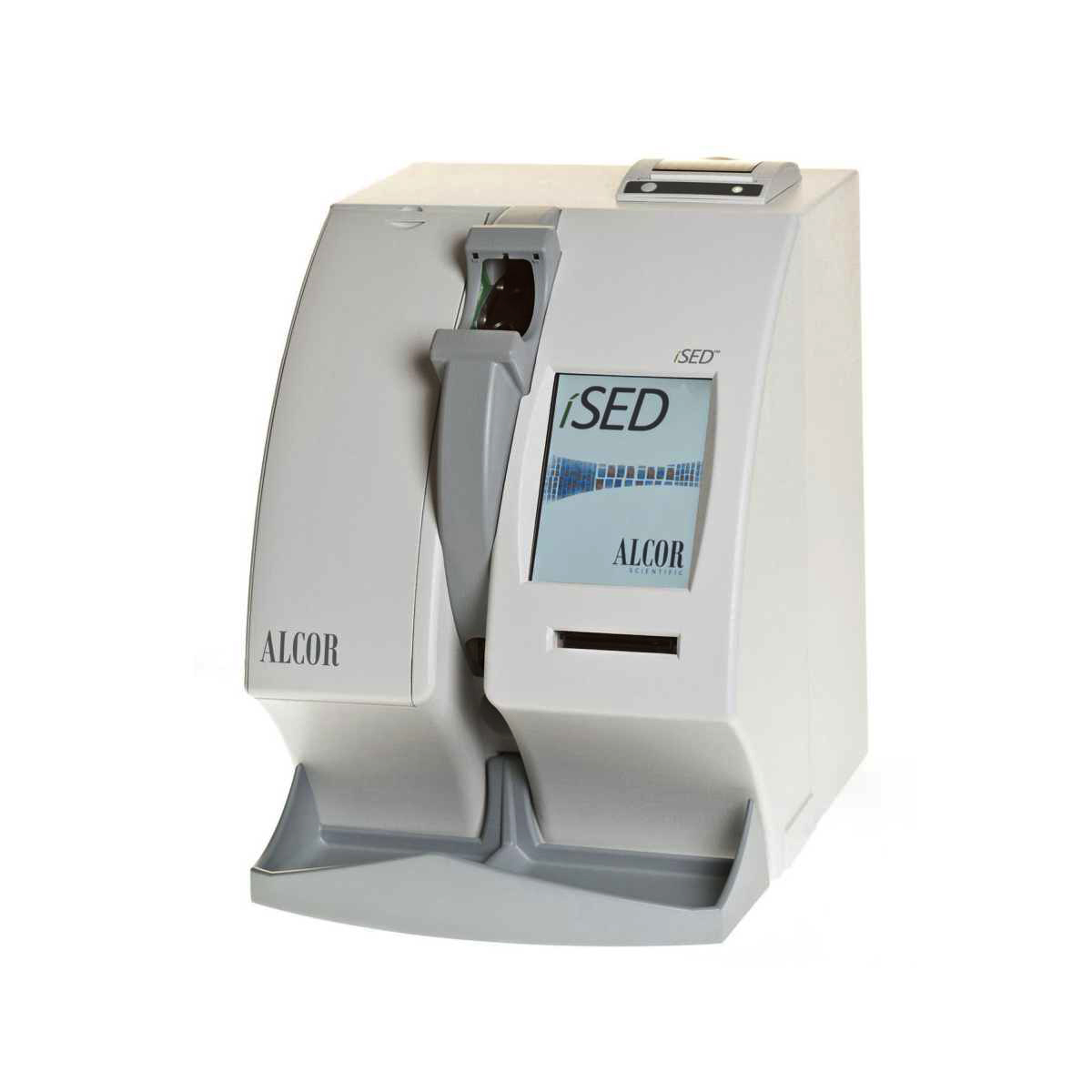

iSED Fully Automated ESR Analyzer

The technical innovation of the iSED® fully-automated ESR analyzer consists of directly measuring the intensity of the red cell aggregation which is responsible for Erythrocyte Sedimentation Rate (ESR). Unlike traditional ESR methodologies that measure the aggregation of the red blood cells indirectly, the iSED measures it directly and expresses the values in mm/hr.
Features:

Results in 20 Seconds

100µL sample drawn directly from primary EDTA tube

Fully automated, walk-away operation

Random access

Positive patient identification via internal barcode reader

Compatible with pediatric tube

Technical Specifications:

Principle of Measure:
Photometrical

Results:
“Printed mm/hr, Range from 1-130 mm/hr”

Sample Requirements:
500uL whole blood, collected in EDTA anti-coagulant tested 24 hours from venipuncture at room temperature or refrigerated.

Tube Requirements:
13 x 75 mm, pierceable capped tube

Quality Control:
Barcoded Seditrol® QC

Barcode Reader:
Internal

Printer:
Internal

Interface Specifications:
serial RS232 port for LIS connection

Weight:
14 kg

Dimensions (H x W x D):
36 x 27 x 34 (cm) /14.3 x 10.5 x13.4 (in)

Voltage:
100-240VAC

Frequency Range:
50-60 Hz

Power:
160W
