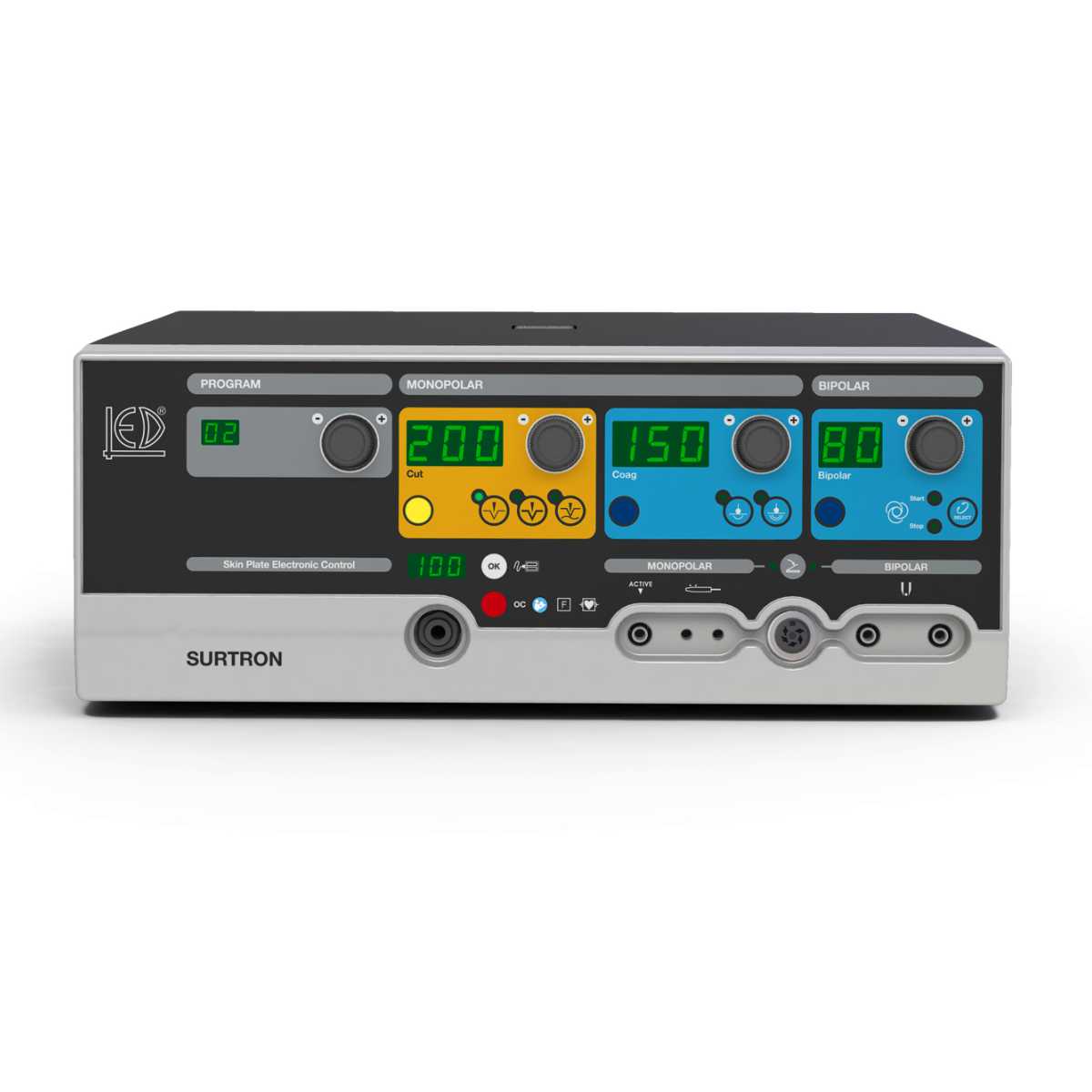

LED Surtron 200 HP Diathermy Machine

SURTRON 200 is a high frequency electrosurgical equipment which is suitable to light and medium surgery.
SURTRON 200 allows to execute surgical minimally invasive  procedure of resection, evaporation and coagulation.
Through its performances, SURTRON 200, allows pure CUT,  cut-coagulation BLEND, incision with reduced prodution of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG and BIPOLAR coagulation.

The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of job.
SURTRON 200 allows a highly professional surgery thanks to the user-friendly and safety solutions normally used. The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.
FEATURES

Code 10100.401

Max output power CUT: 200W – 250Ω

Max output power ENHANCED: 120W – 250Ω

Max output power BLEND: 120W – 200Ω

Max output power FORCED COAG: 150W – 150Ω

Max output power SOFT COAG: 90W – 100Ω

Max output power BIPOLAR COAG: 80W – 50Ω

Working frequency: 600 kHz

Patient circuit: F

Mains voltage: 115-230 Vac

Mains frequency: 50-60 Hz

Electrical input power: 350 VA

Size WxHxD: 370x144x319 mm

Weight: 6 Kgs
CONTROLS

Patient/Plate circuit monitoring

Output power monitoring

Self check control
SAFETY

EN60601-1

EN60601-1-2

EN60601-2-2

Electrical classification: CF

MDD 93/42 / EC: II b
