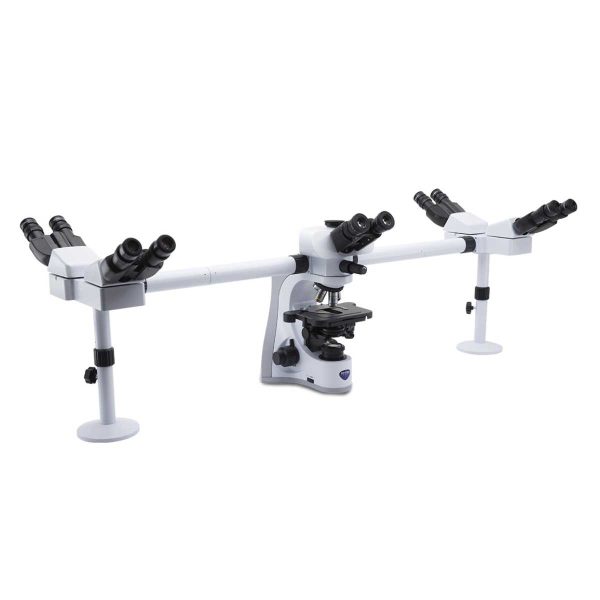

OPTIKA B-510-5 Trinocular Discussion Microscope

Observation mode: Brightfield.

Head: Trinocular (fixed photo port 50/50), 30° inclined, 360° rotating.

Interpupillary distance: Adjustable between 50 and 75 mm.

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: Main head: WF10x/22 mm, high eye-point and with rubber cups. Additional head(s): WF10x/20 mm, high eye-point.

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives (strain-free):

– IOS W-PLAN 4x/0.10

– IOS W-PLAN 10x/0.25

– IOS W-PLAN 40x/0.65

– IOS W-PLAN 100x/1.25 (Oil)

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: Swing-out N.A. 0.2/0.9, with iris diaphragm, focusable and centerable.

Transmitted illumination (Full Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

Specifications:

Optics

Image scale
4-100

Number of objectives
4

Lighting
Transmitted light

Field curvature
Plan

Colour correction
achromatic

Suspension
yes

Immersion lens
yes

Condensor
Abbe N.A.1.25

Lamp type
LED (X-LED3, 3.6 W, comparable to a 50 W halogen bulb)

Objective 1
IOS W-PLAN 4x/0.10, W.D. 17.3 mm

Objective 2
IOS W-PLAN 10x/0.25, W.D. 10 mm

Objective 3
IOS W-PLAN 40x/0.65, W.D. 0.54 mm

Objective 4
IOS W-PLAN 100x/1.25, W.D. 0.13 mm, oil

Eyepiece
WF 10x / 22 mm (Ø 30mm)

infinity corrected
yes

Magnification
40-1000

Optical system
infinity

Capacity

Brightness control
yes

Fluorescence
yes

brightfield
yes

Mechanics

Type of build
Trinocular

Viewing posture (°)
30° angled eyepiece

Specimen stage
Cross table

Revolver
5

Focusing
Coarse and fine movement

General

Weight (g)
9100

Height (mm)
420

Width (mm)
270

Length (mm)
390

Series
B-510

Field of application

Biology and Medicine
yes
