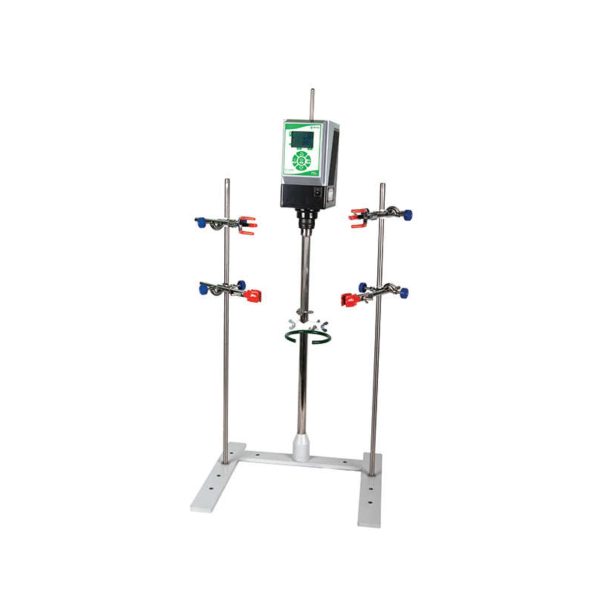

Overhead stirrer PE-8310 (rack PE-2730)

Purpose:
PE-8310 stirrer is intended for stirring a fluid of various viscosity, liquids and solid bodies, liquids and bulk solids.
Advantages:
The Overhead Stirrer is fitted with built-in control unit with LCD, memorized settings function, motor protection against overload and overheating.


Suitable for stirring:

– aqueous solution – 1 mPa/s

– liquid adhesive and fluid paint – 70-500 mPa/s

– many kinds of paint and enamel – 500-3000 mPa/s с

– color concentrate – 3000-30000 mPa/s

– thick glue (for parquet or linoleum) – 30000-50000 mPa/s


Technical specifications:

– Max. viscosity of fluid, mPa/s – 50000

– Volume of stirred sample, L – 0.25 – 20.0

– Rotation speed of stirrer shaft, rpm – 100 to 3000

– Max. rotational moment, Ncm – 60

– Max. stirrer shaft diameter, mm – 8(10)

– Max. stirrer shaft length – unlimited

– Rotational speed accuracy of stirrer, rpm – ±20 об./мин

– Max. power consumption, W – 100

– Supply voltage (50 Hz),V – 220 ± 10

– Dimensions of the unit (stand rod included), mm – 420х380х800

– Weight, kg – 12
Scope of supply:

1. Overhead stirrer – 1 pc

2. PE-2730 stand rod – 1 pc

3. Holding ring – 1 pc

4. Clamp for fastening the stirrer on the stand rod – 1 pc

5. Clamp for fastening the holding ring on the stand rod – 1 pc

6. Two-finger grip (for flasks) – 2 pcs

7. Three-finger grips (for flasks) – 2 pcs

8. Clamp for grips – 4 pcs
