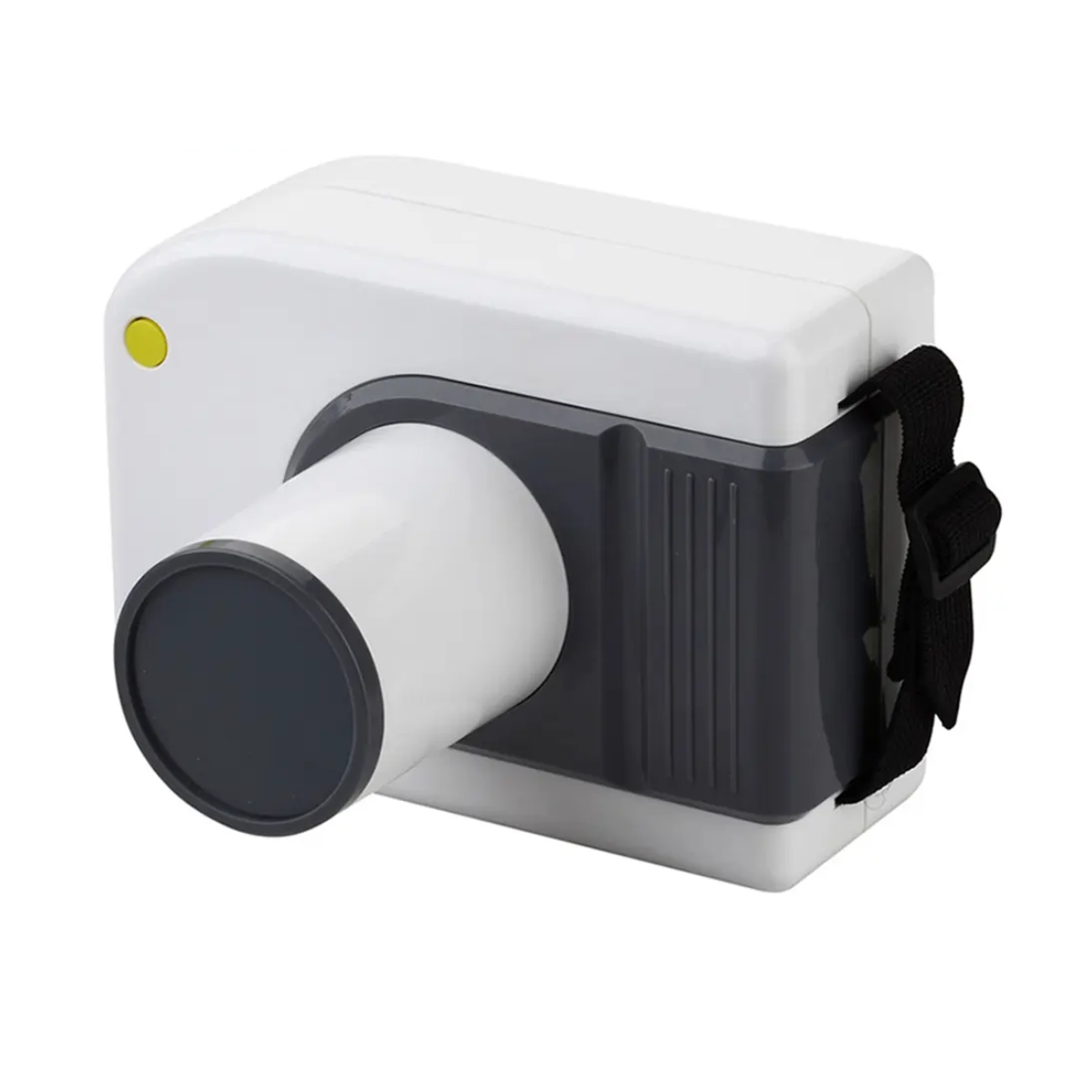

Portable X-Ray Unit

Features:

1. The device is DC high frequency portable dental unit, small, light and nearly no radiation.

2. There are manual buttons installed on the surface of shell, operate easily, all of components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.

3. The unit is mainly suitable for oral pre-treatment diagnosis of internal organisation structure and root depth and so on. It is indispensable in clinics especially for implant surgery.

4. The battery is durable, it can take about 5 hundred images after fully charged.

5. It can be connected with intra-oral digital X-ray imaging system.

6. 3 Colors
Specifications:

Tube Voltage
60kV

Tube current
1MA

Exposure Time
0.02~2S

Tube Focus
0.3*0.3mm

Frequency
30kHz

Battery
DC14.8V 6400mA

Rated Power
60VA

Charger Input
AC100V-240V± 10%

Charger Output
DC16.8V

Gross weight
3.5KG

Package size
220*240*275

The distance from skin to cone
130mm
