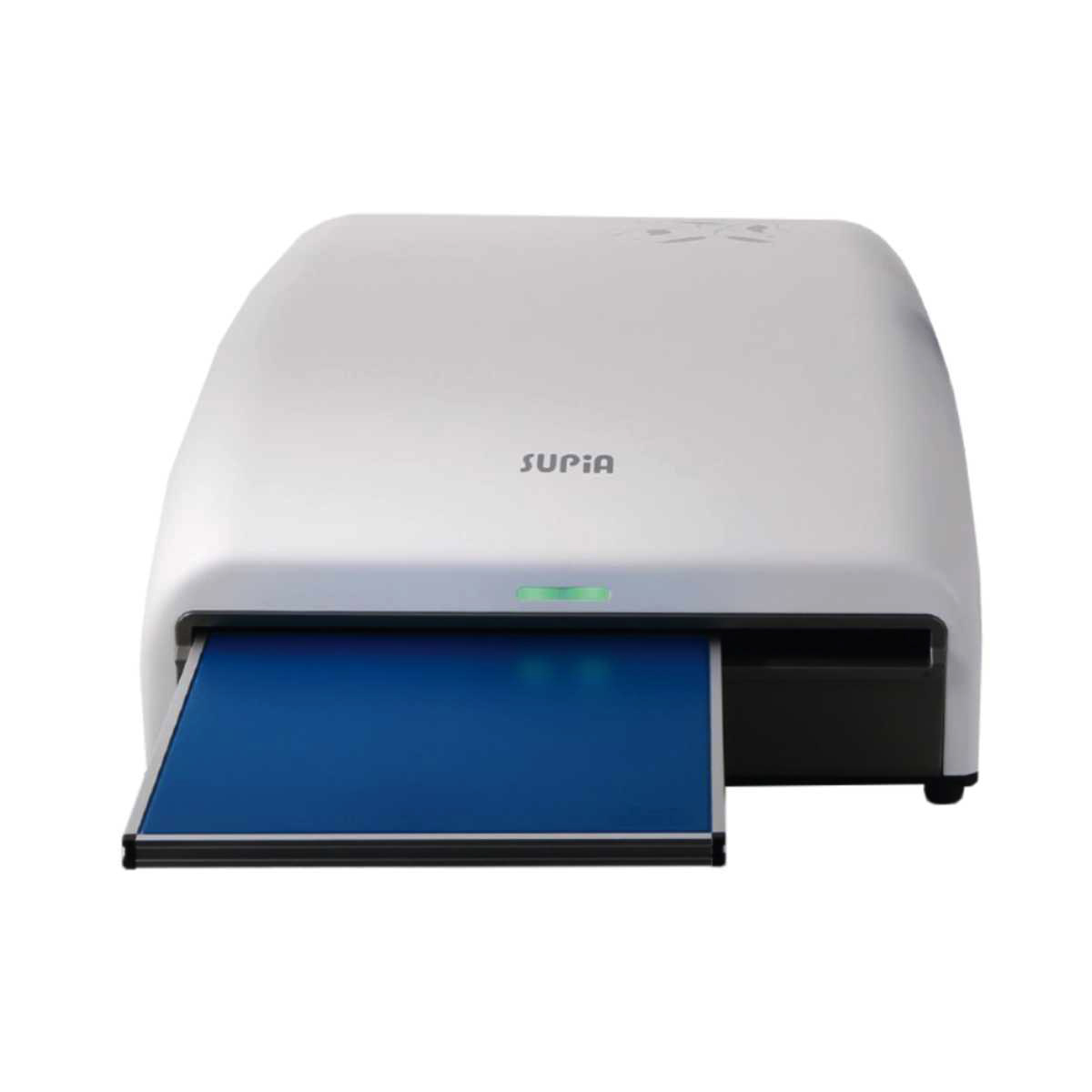

SIGNERS SUPiA X-ray Digitizer ( CR Scanner)

SUPiA X-ray Digitizer made by Signers offers such a better clinic environment with no chemicals, ideal space, high-resolution image quality, and affordability
FEATURE
Rigid Type

• No damage or scratch on image plates during scanning & erasing

• Scanning & Erasing without a roller

• No cut-off image during winter and cold period

Durability

• Extremely simple structure design

• Strong aluminum base plate

• Flip covers preventing dust from inside scanner
Barcode System

• Automatically recognising cassette sizes(14×17″, 10×12″, 18x24cm) by barcode reader
Compact & lightweight design

Very small and compatible CR on desktop (only 63.5cm)
Only 21.5kg (47.4lbs)

Cassette
Strong structure

• Strong enough against external impact

• Totally metal frame

• Enduring under 150kg on cassette

Featherlight

• 14×17″ : 2.05kg 10×12″ : 0.99kg 18x24cm : 0.75kg

Dust free & Easy cleaning

• Easy to clean up dust on IPs

• Prevent dust from outside

User friendly design

• Various colors 14×17″(Green),

10×12″(Blue), 18x24cm(Pink))

• Barcode label

TECHNICAL SPECIFICATION


SUPiA Specifications

Cassette
SUPiA CR Cassette 14×17 (inch)
SUPiA CR Cassette 10×12 (inch)
SUPiA CR Cassette 18×24 (cm)

Throughput
Up to 94 IPs/hour (14×17″/160μm)

Slots
Single Cassette feed

Dimensions (W x D x H)
436 x 636 x 196mm

Weight
21.5kg (47.4lbs)

Grayscale Resolution
Acquisition : 16 bits per pixel
Display : 12 bits per pixel

Power Supply Conditions
Single Phase 50 ~ 60Hz
AC 90 ~ 264V

Network
100 MBit

PC Connection
USB 2.0

Computer Min.
requirements

OS : Win 7 or 10
CPU : Intel i5
RAM : 4GB
Graphic Card : Intel HD 2500
HDD : 500GB
Monitor : FHD 1920 x 1080

Operating conditions
Temperature : 10 ~ 30˚C
Humidity : 15 ~ 85% RH
