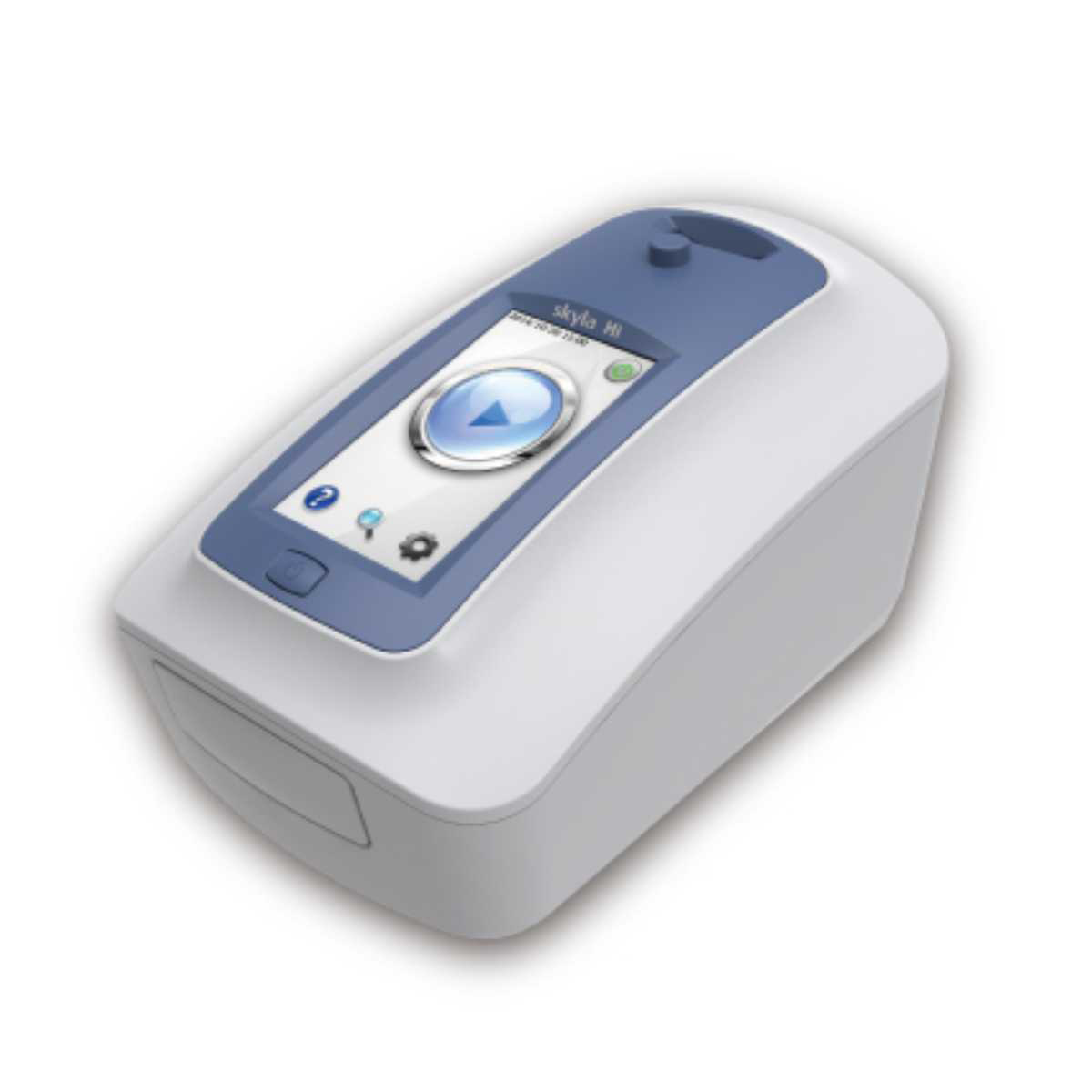

Skyla Hi POC Clinical Chemistry Analyzer

skyla Hi Analyzer enables better access to testing and rapid clinical decision making, discussion, and implementation of optimized treatment. To get the result, only prepare <1 μl fingertips blood or venous blood (depends on test item) without pretreatment with easy steps and then read the result after 6 mins. The device allows two specimens be tested in one run and provides fully automatic procedures from checking the validity of cartridge to printing the results. Reagent Kit HbA1C CRP Lipid Panel (TC,TG, HDL, LDL#) Lipid Plus Panel (Glu,TC,TG, HDL, LDL#) Main Specification Principle Turbidimetric Method / Biochemistry Device Testing Time 5~20 minutes (depends on test items) Display and Interface 5″ TFT color touch screen LCD Memory Capacity 50,000 test results Dimension of Analyzer 270 x 188 x 148 mm Weight of Analyzer 1.7 kg Dimension of Printer Module 134 x 100 x 82.7 mm Weight of Printer Module 0.37 kg Power Supply 100~240 volts AC, 50-60Hz Data Transmission USB 2.0*4 / USB 3.0*1 / RS232*1 / RJ45*1 / Wi-Fi (optional) Reagent and Samples Samples Fingertips blood or venous blood Samples Volume 0.8 ~ 30 μL (depends on test item) Storage Temperature (Reagent) 2 ~ 8˚C Humidity Relative humidity < 95% (Non-condensing) Temperature 10 ~ 32 ˚C Click Here To Download Catalogue
